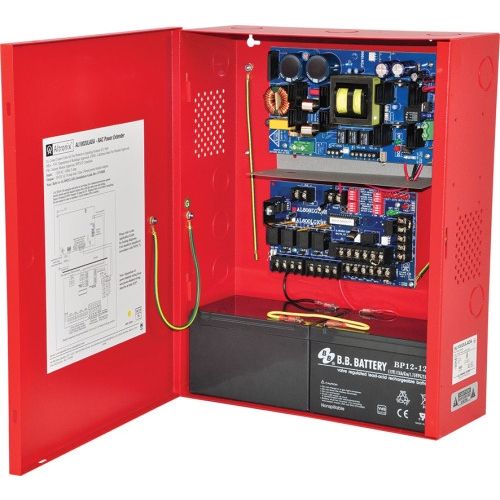

Altronix AL1002ULADA NAC Power Supply

Input

  Voltage:

       120VAC, 60Hz, 5A.

       Two (2) Class A or two (2) Class B inputs.

       Two (2) NC dry contact trigger inputs.

        Input Ratings (INP1 and INP2):

        8-30VDC 6.5mA max from FACP.

        12V 6.5mA, 24V 6.5mA from FACP.

Output

   Voltage:

       24VDC power-limited outputs.

   Current:

       10A max. total alarm current.

        2.5A max. current per output.

        Two (2) outputs may be paralleled for more power on an indicating circuit.

   Auxiliary:

         1A.

    Other:

         Thermal and short circuit protection with auto reset.

          Filtered and regulated outputs.

     Programmable Supervised Indicating Circuit Outputs:

          Four (4) Class B, or Two (2) Class A, or

          One (1) and Two (2) Class B.

Back-up Battery (not included)

           Type: Sealed lead acid or gel type.

            Failover: Upon AC loss, instantaneous.

Supervision

             AC Failure: Form “C” contacts.

             Battery: Form “C” contacts.

Indicators (LED)

             AC Power (Green): Input voltage is present.

             DC Output (Red): Powered.

             Logic Board (Red and Green): Output status.

Special Features

              2-wire horn/strobe Sync mode allows audible notification appliances (horns) and visual notification appliances (strobes) to be silenced/deactivated at the same time.

              Sync protocols include Potter/Amseco, Gentex®, System Sensor®, and CooperWheelock®.

              Temporal Code 3, Steady Mode, Input to Output Follower Mode (maintains synchronization of notification appliances circuit).

               Compatible with 12VDC or 24VDC fire panels.

               Output loop supervision steered to Input 1 or Input 2.

                Signal circuit trouble memory (helps identify intermittent loop problems).

                Common trouble input and output for external trouble signals tie-in.

                Ground fault detection.

Temperature

                Operating: 0° C to 49° C (32° F to 120° F).

                Storage: - 20° C to 70°C ( - 4° F to 158° F).

                Relative Humidity 85% +/- 5%.

                BTU/Hr (approx.): 31 BTU/Hr.
