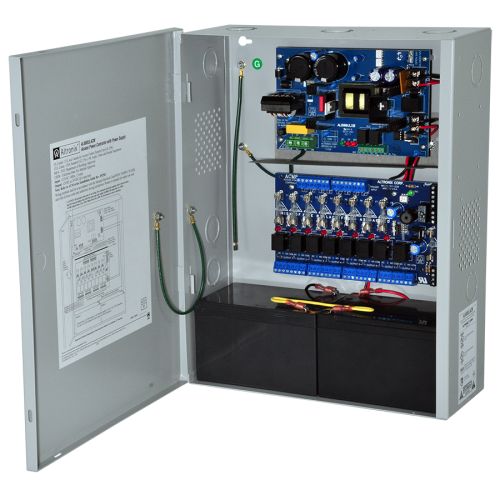

Altronix-AL600ULACM Power Supply/Chargers Multi Output Controllers
Manufacturer Part Number | AL600ULACM |
---|---|
Features | Input: • Input 115VAC 60Hz rated @ 1.9 amp. • Power supply input options: a) One (1) common power input for ACM8/ ACM8CB and lock power (factory installed). b)Two (2) isolated power inputs - One (1)to power the ACM8/ACM8CB and one (1) for lock accessory power, (external power supply is required). (Current is determined by the power supply connected, not to exceed a maximum of 10 amp total). •Eight (8) Access Control System trigger inputs. Input options: a) Eight (8) normally open (NO) inputs. b)Eight (8) open collector inputs. c) Any combination of the above. Output: • 12VDC or 24VDC @ 6 amp supply current. • Eight (8) independently controlled outputs. Output options: a) Eight (8) Fail-Safe and/or Fail-Secure power outputs. b)Eight (8) form “C” 5 amp rated relay outputs c) Any combination of the above. • Eight (8) auxiliary power outputs (unswitched) • Output ratings: - Fuses are rated @ 3.5 amp. • Filtered and electronically regulated outputs (built-in power supply). Features: • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs. • Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input. b)Polarity reversal input from FACP signaling circuit. • Alarm output relay indicates that FACP input is triggered (form “C” contact rated @ 1 amp 28VDC). • Short circuit and thermal overload protection. • AC fail supervision (form “C” contact). Visual Indicators: • Red LEDs indicate outputs are triggered (relays energized). • Green LED indicates FACP disconnect is triggered. • AC input and DC output LED indicators. Battery Backup: • Built-in charger for sealed lead acid or gel type batteries. • AL600ULB (Power Supply Board) maximum charge current 0.7 amp. • Automatic switch over to stand-by battery when AC fails. • Zero voltage drop when unit switches over to battery backup (AC failure condition). • Battery fail and battery presence supervision (form “C” contact). Electrical: • Operating temperature: 0º C to 49º C ambient. • ACM8 board main fuse is rated at 10 amp. • BTU/Hr.: - 12VDC: 36.85 BTU/Hr. - 24VDC: 73.70 BTU/Hr. Mechanical: • Enclosure Dimensions (L x W x H approx.): 15.5” (393.7mm) x 12” (304.8mm) x 4.5” (114.3mm). • Enclosure accommodates up to two (2) 12AH batteries. • Product weight (approx.): 10.3 lbs. (4.67 kg). • Shipping weight (approx.): 11.6 lbs. (5.26 kg). |
Input:
• Input 115VAC 60Hz rated @ 1.9 amp.
• Power supply input options:
a) One (1) common power input for ACM8/ ACM8CB and lock power (factory installed).
b)Two (2) isolated power inputs - One (1)to power the ACM8/ACM8CB and one (1) for lock accessory power, (external power supply is required). (Current is determined by the power supply connected, not to exceed a maximum of 10 amp total).
•Eight (8) Access Control System trigger inputs.
Input options:
a) Eight (8) normally open (NO) inputs.
b)Eight (8) open collector inputs.
c) Any combination of the above.
Output:
• 12VDC or 24VDC @ 6 amp supply current.
• Eight (8) independently controlled outputs.
Output options:
a) Eight (8) Fail-Safe and/or Fail-Secure power outputs.
b)Eight (8) form “C” 5 amp rated relay outputs
c) Any combination of the above.
• Eight (8) auxiliary power outputs (unswitched)
• Output ratings:
- Fuses are rated @ 3.5 amp.
• Filtered and electronically regulated outputs (built-in power supply).
Features:
• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
• Fire Alarm disconnect input options:
a) Normally open (NO) or normally closed (NC) dry contact input.
b)Polarity reversal input from FACP signaling circuit.
• Alarm output relay indicates that FACP input is triggered (form “C” contact rated @ 1 amp 28VDC).
• Short circuit and thermal overload protection.
• AC fail supervision (form “C” contact).
Visual Indicators:
• Red LEDs indicate outputs are triggered (relays energized).
• Green LED indicates FACP disconnect is triggered.
• AC input and DC output LED indicators.
Battery Backup:
• Built-in charger for sealed lead acid or gel type batteries.
• AL600ULB (Power Supply Board) maximum charge current 0.7 amp.
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when unit switches over to battery backup (AC failure condition).
• Battery fail and battery presence supervision (form “C” contact).
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• ACM8 board main fuse is rated at 10 amp.
• BTU/Hr.: - 12VDC: 36.85 BTU/Hr. - 24VDC: 73.70 BTU/Hr.
Mechanical:
• Enclosure Dimensions (L x W x H approx.): 15.5” (393.7mm) x 12” (304.8mm) x 4.5” (114.3mm).
• Enclosure accommodates up to two (2) 12AH batteries.
• Product weight (approx.): 10.3 lbs. (4.67 kg).
• Shipping weight (approx.): 11.6 lbs. (5.26 kg).
