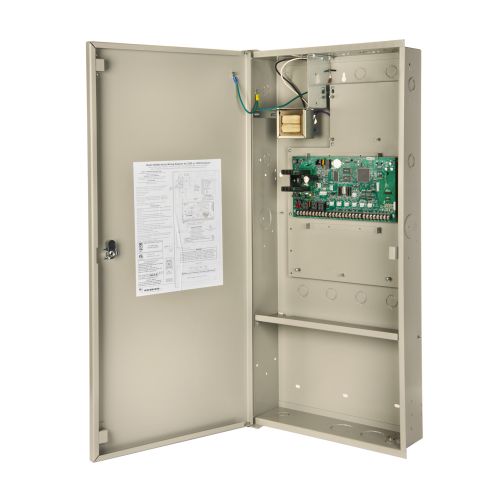

DMP XR550 Series Intrusion Detection Controller
| Features | System Features • Select Area, All/Perimeter, or Home/Sleep/Away operation • 32 individual reporting areas, with common areas • Up to 16 supervised door access-points and/or keypads • 32 character names available for user, zone, area, profiles and group names • Up to 4 profiles per user • Fully supervised 10/100 network and CDMA/HSPA+ cellular communication • Communications Diagnostics check network and cellular communication status from the keypad. • Eight communication paths between the panel and Central Station • Guest operation allows up to three separate protected systems • Flexible system arming features, with Instant Arming option • Lock Down operation from keypad or remotely • Up to 562 two-wire smoke detector or fire-initiating zones • 10,000 user codes with 99 profiles • 506 Outputs • On-Board 10/100 Network Communication • Plug-in CDMA/HSPA+ cellular communicators allow for MyAccess™, DMP App, and Central Station connection • Flash Updateable: No more firmware chips to replace • Adaptive Technology™ — Cost-effective supervised cellular backup • Up to 500 DMP 1100 Series Wireless or Wired LX Bus • Up to 99 schedules for areas, doors, outputs, Z-Wave Favorites, and profiles DMP XR550 Series™ Panels meet all your Burglary, Fire, • 12,000 event buffer • Built-in phone line monitor • Multi-lingual menus available by user • 1.5 Amps 12 VDC smoke and auxiliary output with OVC protection • User inactivity audit • easyNET™ connection for the DMP App when used with a network connection XR550DN/XR550DE System Features • Bank, Safe and Vault Operation • Two Man Rule, Panic Button Test and Early Morning Ambush XR550DE system Features • 128 Bit AES (Advanced Encryption Standard) Encryption • NIST Certified • Meets ICPG 705 |
|---|---|
| Embed Video | www.youtube.com/embed/y3ls_K3I9HU?rel=0" frameborder="0" allowfullscreen> |
System Features
• Select Area, All/Perimeter, or Home/Sleep/Away operation
• 32 individual reporting areas, with common areas
• Up to 16 supervised door access-points and/or keypads
• 32 character names available for user, zone, area, profiles and group names
• Up to 4 profiles per user
• Fully supervised 10/100 network and CDMA/HSPA+ cellular communication
• Communications Diagnostics check network and cellular communication status from the keypad.
• Eight communication paths between the panel and Central Station
• Guest operation allows up to three separate protected systems
• Flexible system arming features, with Instant Arming option
• Lock Down operation from keypad or remotely
• Up to 562 two-wire smoke detector or fire-initiating zones
• 10,000 user codes with 99 profiles
• 506 Outputs
• On-Board 10/100 Network Communication
• Plug-in CDMA/HSPA+ cellular communicators allow for MyAccess™, DMP App, and Central Station connection
• Flash Updateable: No more firmware chips to replace
• Adaptive Technology™ — Cost-effective supervised cellular backup
• Up to 500 DMP 1100 Series Wireless or Wired LX Bus
• Up to 99 schedules for areas, doors, outputs, Z-Wave
Favorites, and profiles
DMP XR550 Series™ Panels meet all your Burglary, Fire,
and Access Control needs.
• 12,000 event buffer
• Built-in phone line monitor
• Multi-lingual menus available by user
• 1.5 Amps 12 VDC smoke and auxiliary output with OVC protection
• User inactivity audit
• easyNET™ connection for the DMP App when used with a network connection XR550DN/XR550DE System Features
• Bank, Safe and Vault Operation
• Two Man Rule, Panic Button Test and Early Morning Ambush XR550DE system Features
• 128 Bit AES (Advanced Encryption Standard) Encryption
• NIST Certified
• Meets ICPG 705
