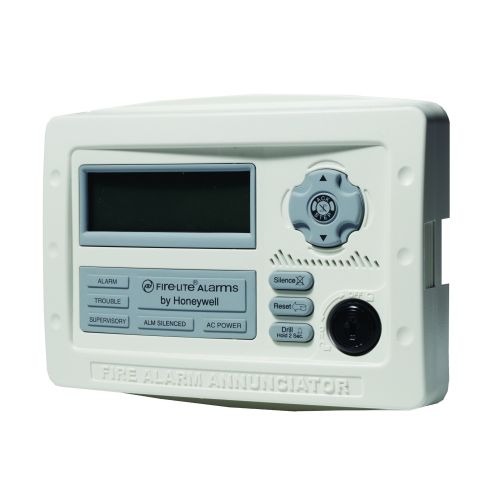

FireLite Alarms ANN-80-W Annunciator
Manufacturer Part Number | ANN-80-W |
---|---|
Features | • Listed to UL Standard 864, 9th Edition. • Backlit 80-character LCD display (20 characters x 4 lines). • Mimics all display information from the host panel. • Control switches for System Acknowledge, Signal Silence, Drill, and Reset. • Control switches can be independently enabled or disabled at the FACP. • Keyswitch enables/disables control switches and mechanically locks annunciator enclosure • Keyswitch can be enabled or disabled at the FACP. • Enclosure supervised for tamper. • System status LEDs for AC Power, Alarm, Trouble, Supervisory, and Alarm Silence. • Local sounder can be enabled or disabled at the FACP. • ANN-80 connects to the ANN-BUS terminal on the FACP and requires minimal panel programming. • Displays device type identifiers, individual point alarm, trouble, supervisory, zone, and custom alpha labels. • Time-and date display field. • Surface mount directly to wall or to single, double, or 4" square electrical box. • Semi-flush mount to single, double, or 4" square electrical box. Use ANN-SB80KIT for angled view mounting. • Can be remotely located up to 6,000 feet (1,800 m) from the panel. • Backlight turns off during AC loss to conserve battery power but will turn back on if an alarm condition occurs. • May be powered by 24 VDC from the host FACP or by remote power supply (requires 24 VDC). • Up to eight ANN-80s can be connected on the ANN-BUS. |
• Listed to UL Standard 864, 9th Edition.
• Backlit 80-character LCD display (20 characters x 4 lines).
• Mimics all display information from the host panel.
• Control switches for System Acknowledge, Signal Silence, Drill, and Reset.
• Control switches can be independently enabled or disabled at the FACP.
• Keyswitch enables/disables control switches and mechanically locks annunciator enclosure
• Keyswitch can be enabled or disabled at the FACP.
• Enclosure supervised for tamper.
• System status LEDs for AC Power, Alarm, Trouble, Supervisory, and Alarm Silence.
• Local sounder can be enabled or disabled at the FACP.
• ANN-80 connects to the ANN-BUS terminal on the FACP and requires minimal panel programming.
• Displays device type identifiers, individual point alarm, trouble, supervisory, zone, and custom alpha labels.
• Time-and date display field.
• Surface mount directly to wall or to single, double, or 4" square electrical box.
• Semi-flush mount to single, double, or 4" square electrical box. Use ANN-SB80KIT for angled view mounting.
• Can be remotely located up to 6,000 feet (1,800 m) from the panel.
• Backlight turns off during AC loss to conserve battery power but will turn back on if an alarm condition occurs.
• May be powered by 24 VDC from the host FACP or by remote power supply (requires 24 VDC).
• Up to eight ANN-80s can be connected on the ANN-BUS.
