Schlage PS902

Product No. SCH-PS902
MPN:PS902

Be the first to review this product

$225.00 $143.58



Availability: Available for Order

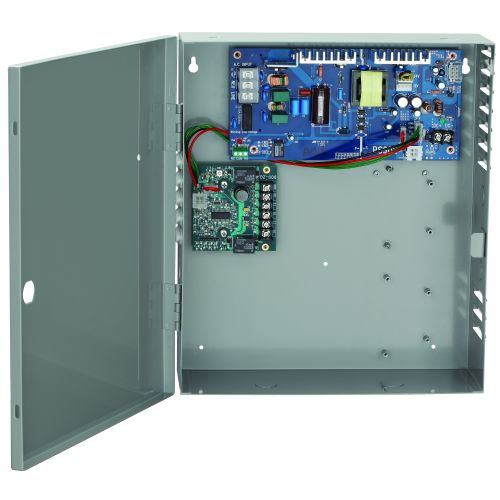

Schlage PS902


Schlage PS902 POWER SUPPLY 2 AMP The Schlage comprehensive line of power supplies and option boards was designed to address the changing needs of the access control market. Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc.). Common to the line of PS900 Series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.
Technical Specifications: Input voltage: 120/240 VAC, 50/60 Hz, universal input Output voltage: 2A @ 12 or 24 VDC Field selectable with jumper Switching supply, 5% regulation, 240mVpp max ripple Enclosure: Grey/baked enamel 14" x 12" x 4" (H x W x D) Eight 1 2" x 34" knockouts NEMA Grade 1 Hinged cover with lock down screws Operating temperature: 32 - 120F (0 - 49C) Certifications: ANSI/UL 294 ULC-S318 RoHS FCC Part 15 Class 2
