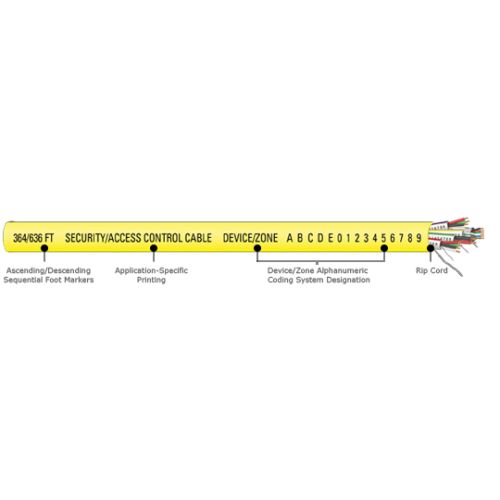

SmartWire Composite Access Control Cable Plenum 4 Element 1000' Boxed
Manufacturer Part Number | 4461030-S |
---|---|
Features | Description: Elem1:18 AWG 4 Conductor Bare Copper; Elem2: 22 AWG 3 Pair OAS Bare Copper; Elem3:22 AWG 2 Conductor Bare Copper; Elem4:22 AWG 4 Conductor Bare Copper Plenum Composite Cable, UL C(UL) CMP Conductor Description: Element 1: 18, Element 2, 3, and 4: 22; All Elements: Stranded Bare Copper Insulation: All Elements: .008" Color Code: Element 1: Black/Red/White/Green; Element 2: Black/Red, White/Green, Brown/Blue; Element 3: Black/Red; Element 4: Black/Red/White/Green Shield: Element 1, 3 & 4: N/A; Element 2: Overall Aluminum Mylar Drain Wire: Element 1, 3 & 4: N/A; Element 2: 24 AWG 7 Strand Tinned Copper Jacket: Inner Jackets: All Elements: Low-Smoke PVC .018"; Outer Jacket: Low-Smoke PVC .020" Marking: Elem1: LOCK POWER A B C D E 0 1 2 3 4 5 6 7 8 9; Elem2: CARD READER A B C D E 0 1 2 3 4 5 6 7 8 9; Elem3: DOOR CONTACT A B C D E 0 1 2 3 4 5 6 7 8 9; Elem4: REX/SPARE A B C D E 0 1 2 3 4 5 6 7 8 9 Outer Jacket: SMARTWIRE ACCESS CONTROL CABLE DOOR / ZONE A B C D E 0 1 2 3 4 5 6 7 8 9 UL C(UL) CMP ROHS MADE IN THE Overall Diameter: Elem1: .184" Nom.; Elem2: .207" Nom.; Elem3: .126" Nom.; Elem4: .145" Nom; Outer Jacket: .415"Nom. Conductor DCR: Elem 1: 6.66 Ohms/Mft.; Elem 2, 3 & 4: 16.9 Ohms/Mft. Capacitance: Elem 1: 27 pF/Ft. Nom.; Elem 2: 51 pF/Ft. Nom.; Elem 3 & 4: 20 pF/Ft. Nom. Impedance: Elem 1: 70 Ohms/Mft.; Elem 2: 27 Ohms/Mft.; Elem 3 & 4: 94 Ohms/Mft. Temperature & Voltage Rating: 0 C to 75 C / 300 Volt Cable Weight: 108 Lbs/Mft. |
Description:
Elem1:18 AWG 4 Conductor Bare Copper;
Elem2: 22 AWG 3 Pair OAS Bare Copper;
Elem3:22 AWG 2 Conductor Bare Copper;
Elem4:22 AWG 4 Conductor Bare Copper Plenum Composite Cable, UL C(UL) CMP
Conductor Description:
Element 1: 18, Element 2, 3, and 4: 22;
All Elements: Stranded Bare Copper Insulation:
All Elements: .008" Color Code:
Element 1: Black/Red/White/Green;
Element 2: Black/Red, White/Green, Brown/Blue;
Element 3: Black/Red;
Element 4: Black/Red/White/Green Shield:
Element 1, 3 & 4: N/A;
Element 2: Overall Aluminum Mylar Drain Wire:
Element 1, 3 & 4: N/A;
Element 2: 24 AWG 7 Strand Tinned Copper Jacket:
Inner Jackets: All Elements: Low-Smoke PVC .018";
Outer Jacket: Low-Smoke PVC .020" Marking:
Elem1: LOCK POWER A B C D E 0 1 2 3 4 5 6 7 8 9;
Elem2: CARD READER A B C D E 0 1 2 3 4 5 6 7 8 9;
Elem3: DOOR CONTACT A B C D E 0 1 2 3 4 5 6 7 8 9;
Elem4: REX/SPARE A B C D E 0 1 2 3 4 5 6 7 8 9
Outer Jacket:
SMARTWIRE ACCESS CONTROL CABLE DOOR / ZONE A B C D E 0 1 2 3 4 5 6 7 8 9 UL C(UL) CMP ROHS MADE IN THE Overall Diameter:
Elem1: .184" Nom.;
Elem2: .207" Nom.;
Elem3: .126" Nom.;
Elem4: .145" Nom;
Outer Jacket: .415"Nom.
Conductor DCR:
Elem 1: 6.66 Ohms/Mft.;
Elem 2, 3 & 4: 16.9 Ohms/Mft.
Capacitance:
Elem 1: 27 pF/Ft. Nom.;
Elem 2: 51 pF/Ft. Nom.;
Elem 3 & 4: 20 pF/Ft. Nom.
Impedance:
Elem 1: 70 Ohms/Mft.;
Elem 2: 27 Ohms/Mft.;
Elem 3 & 4: 94 Ohms/Mft.
Temperature & Voltage Rating: 0 C to 75 C / 300 Volt
Cable Weight: 108 Lbs/Mft.
