System Sensor OSI-R-SS CONVENTIONAL BEAM

Special Price $1,351.50

Regular Price $1,590.00 -15%

Availability: Available for Order

SKU

SYS-OSIRSS

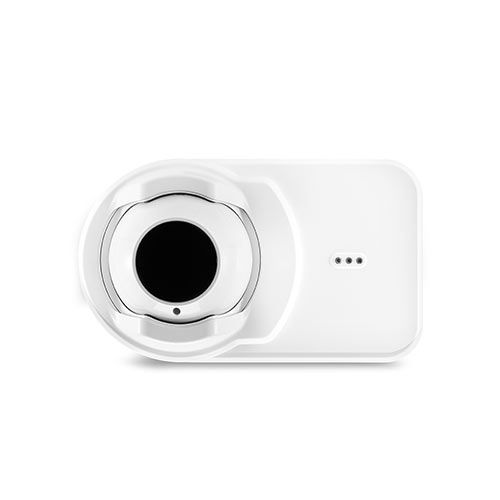

System Sensor OSI-R-SS CONVENTIONAL BEAM

The OSI-R-SS is a 4-wire, single-ended, reflected type beam smoke detector that includes an 8" reflector and an integral sensitivity test.

More Information
Manufacturer Part Number	OSI-R-SS
Features	• Combined transmitter/receiver unit • Wide 12° field of view • Fast, easy, and intuitive beam alignment indicated by directional LED cross-hair arrows • Long range coverage of 5-100 m (16-328 ft) is standard; no separate long-range kit required • Highly resistant to building movement; tolerates +/- 1° movement • Resistant to strong light sources; does not alarm when saturated by sunlight • Resistant to solid object intrusion• Automatic sensitivity threshold level setting • 50° horizontal and 20° vertical beam adjustment • Built-in imager heater is standard • Remote test station capable for electronic simulated smoke test from ground level • Standby, fault and alarm LED indicators visible from the front and bottom • Automatic drift compensation • Paintable housing/cover • Removable plug-in terminal blocks • Optional heater kit available for the reflector

• Combined transmitter/receiver unit

• Wide 12° field of view

• Fast, easy, and intuitive beam alignment indicated by directional LED cross-hair arrows

• Long range coverage of 5-100 m (16-328 ft) is standard; no separate long-range kit required

• Highly resistant to building movement; tolerates +/- 1° movement

• Resistant to strong light sources; does not alarm when saturated by sunlight

• Resistant to solid object intrusion• Automatic sensitivity threshold level setting

• 50° horizontal and 20° vertical beam adjustment

• Built-in imager heater is standard

• Remote test station capable for electronic simulated smoke test from ground level

• Standby, fault and alarm LED indicators visible from the front and bottom

• Automatic drift compensation

• Paintable housing/cover

• Removable plug-in terminal blocks

• Optional heater kit available for the reflector
