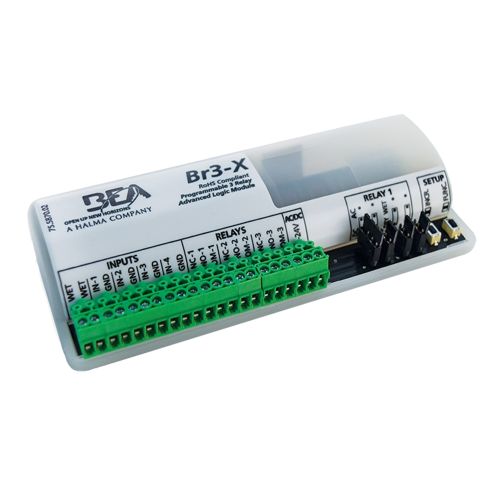

BEA’s Br3-X provides both simple and advanced logic controls. Common uses for the Br3-X include automatic pedestrian doors, access control, industrial automation and single-occupancy restrooms.
Intelligent, programmable controllers -- and BEA boasts a wide family of logic module options, including the BR3-X and Br2-900.
Notable Features Include:
Logic module with integrated 900 MHz wireless technology eliminates the need for separate logic module and wireless receiver (Br2-900)
Sequenced or simultaneous relay activation for application flexibility (Br2-900)
2-AMP relays allow the direct release of an electric locking device wirelessly, eliminating the need for a separate logic module or isolation relay (Br2-900)
Extended Hold Mode allows wireless push plates to function like hardwired push plates (if push plate is held, relay does not time out) (Br2-900)
Wireless functionality eliminates the need to run input wires directly to the logic module, saving both time and money (Br2-900)
Dry auxiliary input for overriding Day / Night Mode (Br2-900)
Versatility with 13 programmable logic functions for the BR3-X
Two 3-AMP relays and one 1-AMP relay, all with built-in surge suppression, eliminates the need for external components when installing some electric locking devices (BR3-X)
WET output with AC / DC voltage for powering an electric locking device directly from the module (BR3-X)
BEA's BR3-X provides both simple and advanced logic controls. Common uses for the Br3-X include automatic pedestrian doors, access control, industrial automation and single-occupancy restrooms.
BEA's BR2-900 is a 2-relay logic module with built-in 900 MHz wireless technology. The BR2-900 is compatible with all existing BEA 900 MHz transmitters and products, plus the Universal Transmitter.
