1260-72 693 LCN Door Closers and Operator

Regular Price $23.00 -28% Special Price $16.52

Availability: Available for Order

SKU

LCN100126072BLACK

Notify me when the price drops

1260-72 693 LCN Door Closers and Operator is available to buy in increments of 1

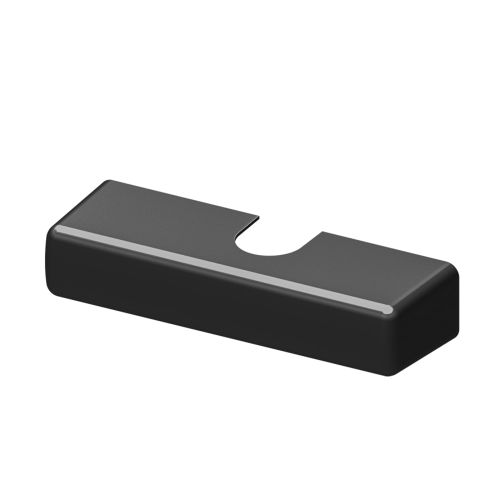

1260 Series Standard Slim Line Plastic Cover, Black Finish

Description

The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.

Speicfications

More Information
Series	1260 Series Surface Mounted Closers
Vendor	Allegion
Manufacturer	LCN
BAA Qualified	Yes
Base Material	Varies
Installation	Commercial
Finish Family	Black

Details

Combines features of both the 1070 and 1370 LCN Series.

Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
Mounts to most common commercial footprint (3/4” x 9 1/16”)
Closer meets ADA requirements. See 1260 Series catalog page 10
Optional Quick Fix™ bracket kit
Standard or optional custom powder coat finish
Optional SRI primer for installations in corrosive conditions
Optional Slim Line cover

The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.

Instructions

Catalogs

LCN 1000 Series Surface Mounted Closers Guide
