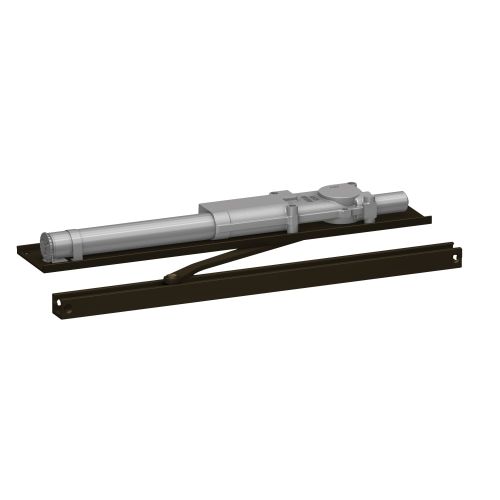

2031-H LH 616 LCN Door Closers and Operator

Regular Price $2,903.00 -43% Special Price $1,654.71

Availability: Available for Order

SKU

LCN1002031HLHUS10B

2031-H LH 616 LCN Door Closers and Operator is available to buy in increments of 1

Grade 1 Standard Single Lever Overhead Concealed Closer, Hydraulic Slide Track In Header Mounting, Slide Track Arm with Hold Open, 110 Deg. Swing, Adjustable Backcheck, Size 1, Satin Bronze Blackened Satin Relieved Clear Coated Finish, Left-Handed

Description

The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4" Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.

Speicfications

More Information
Series	2030 Series Concealed Closers
Vendor	Allegion
Manufacturer	LCN
BAA Qualified	Yes
Grade	Grade 1
Installation	Commercial
Limited Warranty	15 Years
Finish Family	Dark Bronze
Arm Type	Slide Track Arm, Standard with Hold Open
Closer Size	1
Degree Swing	110 Deg.
Handing	Left-Handed
Hold Open	Yes
Mounting Group	Hydraulic
Mounting Location	Header
Mounting Style	Slide Track
Type	Concealed Overhead

Details

The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4” aluminum transom.

Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
Handed for right or left swinging doors
Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
Closers to meet ADA requirements
Standard or optional custom powder coat finish
Optional plated finish on arm, fasteners and finish plate

The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

Instructions

Catalogs

LCN Concealed Closers Catalog
