The 2610 Auto Equalizer is LCN's pneumatically powered concealed multi-door solution. This low energy power operator provides easy access for people with disabilities or the elderly. Designed primarily for manual opening applications that occasionally require automatic opening.

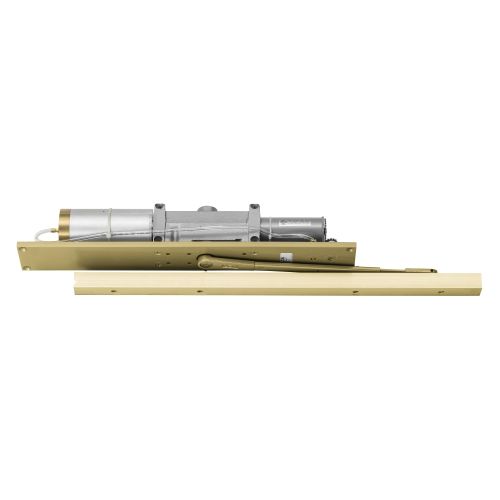

2613-STD LH 633 LCN Door Closers and Operator
Regular Price $4,786.00 -45% Special Price $2,618.90
Availability: Available for Order
SKU
LCN2613STDLHUS4
2613-STD LH 633 LCN Door Closers and Operator is available to buy in increments of 1
Grade 1 Overhead Concealed Pneumatic Auto Equalizer Door Operator, 4" Minimum Header, Slide Track Arm Standard, In Header Mounted, 30" - 48" Door, 90 Deg. Powered, 160 Deg. Manual Swing, Machine and Wood Screws, Satin Brass Finish, Left Handed
Description
Speicfications
| Series | 2610 Series Pneumatic Operators |
|---|---|
| Vendor | Allegion |
| Manufacturer | LCN |
| BAA Qualified | Yes |
| Base Material | Cast Iron Cylinder |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 2 Years |
| Origin | USA |
| Finish Family | Matte Brass |
| Arm Type | Slide Track Arm, Standard |
| Back Check | Adjustable |
| Closer Size | 3 |
| Degree Swing | 90 Deg. Powered, 160 Deg. Manual |
| Handing | Left-Handed |
| Hold Open | No |
| Mounting Group | Pneumatic |
| Mounting Location | Header |
| Mounting Style | Slide Track |
| Screw Type | Machine and Wood |
| Type | Concealed Overhead |
Details
The 2610 Series is a low energy operator that provides easy access for people with disabilities.
- Ideal for multi-door applications since cost per door leaf decrease significantly as the number of door leaves increases.
- Standard 2610 series closer shipped with single lever (standard) arm, mounting/finish plate, standard track and wood and machine screw pack.
- Meets ADA requirements (power mode).
- Sized cylinders for interior doors to 4’0” and exterior doors to 3’0”.
- Handed for right or left swinging doors.
- Requires additional system components.
- Standard or optional custom powder coated finish.
- Optional plated finish on arm, fasteners, and mounting/finish plate.
The LCN 2610 Series is a pneumatically powered multi-door solution. It is designed primarily for manual opening applications that occasionally require automatic opening.
