Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is UL1034 listed.

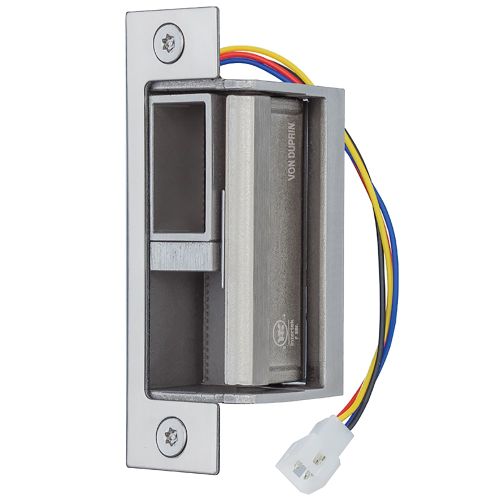

6400 32D Von Duprin Electric Strikes, Bolts, Magnet
Regular Price $900.00 -46% Special Price $483.84
Availability: 148 available for order
SKU
VON1006400US32D
6400 32D Von Duprin Electric Strikes, Bolts, Magnet is available to buy in increments of 1
Grade 1 Electric Strike, Fail Secure (Electrically Unlocked) 12/24 VDC, 4-7/8" x 1-1/4" Faceplate, Fire Rated, For use with Cylindrical or Mortise Locks on Single Doors, Hollow Metal, Aluminum, or Wood Frame, Satin Stainless Steel Finish
Description
Specifications
| Series | 6400 Series Electric Strikes |
|---|---|
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| Application | Single Door |
| ANSI | A156.31 |
| BAA Qualified | No |
| Fire Rating | Yes {Variable} |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 1 Year |
| Origin | USA |
| Finish Family | Matte Silver |
| Configuration | Universal |
| Faceplate Size | 4-7/8" x 1-1/4" |
| For Use With | Cylindrical/Mortise Locks |
| Frame Application | Hollow Metal, Aluminum, or Wood |
| Keeper Size | Pullman Keeper |
| AMP Draw | 375mA at 12VDC, 190mA at 24VDC |
| Function | Fail Secure |
| Operating Voltage | 12/24 VDC |
| UL Listing | UL 10C, 1034 |
Details
Designed to be modular and highly configurable to fit nearly any mortise or cylindrical lock.
- Modular design fits cylindrical and nearly any mortise lock
- Heavy-duty stainless steel construction in BHMA 630 satin finish
- Vertical adjustments allow for alignment with a wide variety of mortise locks with offset latches
- Horizontal adjustment of up to 1⁄8” improves fit on tight door preps § Can accommodate up to 1” deadbolt (for night latch only)
- Field selectable voltage 12 or 24VDC and 12 to 24VAC
- Plug-in voltage connectors are included for ease of installation and removal during strike servicing
- Optional plug-in latchbolt monitor can be added in the field
- Non-handed, unique internal solenoid design prevents keeper from heating up
- Low current draw (0.19 amps @ 24 VDC)
- Suitable for interior and exterior doors
- 3-hour fire-rated to UL 10C (fail secure only)
- UL 1034 listed for burglary-resistant electric door strikes
- Meets ANSI/BHMA A156.31, Grade 1 for endurance and dynamic strength
- Meets ANSI/BHMA A156.31, Grade 1, 1500 lbs static strength § Dynamic strength 70 ft-lbs
- Endurance 2,000,000 cycles
As a 3-hour UL 10C listed strike, the 6400 Series is intended as a fail-secure only solution for fire-rated openings. Its durability and quality are shown by its UL 1034 listing, heavy-duty stainless steel construction and over 2,000,000 cycles endurance testing.
