The 4600 Heavy Duty Designer Deadlatch Handles are designed to operate Adams Rite deadlatches and retro-fit onto the 2190 Interconnected Deadbolt/Deadlatch. Offered in a wide range of lever designs and architectural finishes to match the clean lines of a narrow stile door.

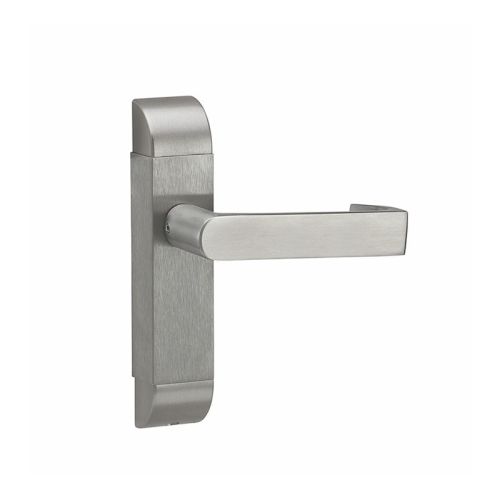

4600-02-512-32D Adams Rite Locks, Cylinders, Cores, Keyblank
Regular Price $208.00 -50% Special Price $104.83
Availability: Available for Order
SKU
ADA10046000251232D
Grade 1 Passage Mortise Trim Pack Only, Non-Keyed, Round Lever, Escutcheon, 1-3/4" - 2" Door Thickness, Satin Stainless Steel Finish, Left Hand/Left Hand Reverse, Field Reversible
Description
Speicfications
| Series | 4600 Heavy Duty Deadlatch Handle |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | Adams Rite |
| BAA Qualified | Yes |
| Fire Rating | No |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 5 Years |
| Origin | USA |
| Cylinder Type | Non-Keyed |
| Handing | Left Hand/Left Hand Reverse |
| Door Thickness | 1-3/4" - 2" |
| Function | Passage |
| Screws | Machine |
Details
Designed with a patented adjustable drive mechanism to operate the 4300, 4500, and 4900 Series Deadlatches.
- Design: Designed to match the clean lines of a narrow stile door, the 4600 Heavy Duty Designer Series Deadlatch Handles combine aesthetics, function, and strength in a compact yet robust package. Offered in a wide range of lever designs and architectural finishes, the 4600 Series Deadlatch Handle complements the most contemporary door systems.
- Handles: Available in standard and designer series levers to blend with existing architecture or to create a new design statement. Made from solid cast stainless, brass, or bronze, and finished to match any design requirement. Standard series lever styles (-01, -02, -03) are designed to return within 1/2” of the door face, as required by code in some areas.
- Escutcheon: Mounted base is secured by hidden screws and has two large helical compression springs. A 1/4” square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
- Cam Plug (4581): Used when matched with 4300, 4500, or 4900 Series Deadlatches. Secured to the latch body by cylinder setscrew, the cam plug is tied to the handle escutcheon by integral anti-rotation pins. Handing easily reversed with push-and-release cam design.
- Options: Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing. Standard handles are for 1-3/4” thick doors. Available by special order for doors up to 3-1/4”. Fixed lever (dummy) kit available – use part number DTK-4600. Through-bolt mounting kit for back-to-back mounting on wood doors, use part number TBK-4600-XX (specify door thickness).
- Standard Package: Packed individually with cam plug (as needed), fasteners, and optional equipment specified.
4600 Deadlatch Handles can be retrofitted in the field onto the 2190/2290 Interconnected Deadbolt/Deadlatch. Shipped handed, but easily reconfigured to accommodate either door swing (MV and MN handle types cannot be re-handed).
