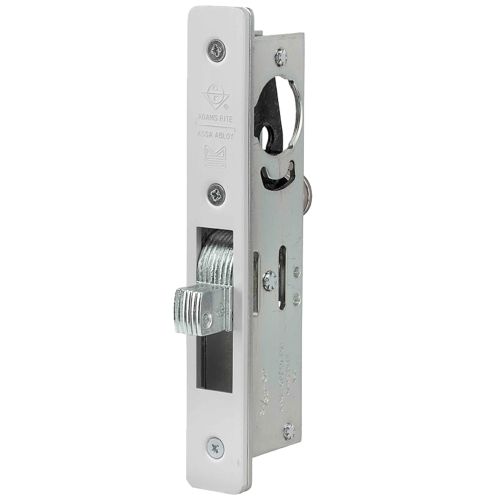

1830-03-628 Adams Rite Locks, Cylinders, Cores, Keyblank

Provides bottom rail locking in ultra-narrow stile or tempered glass doors.

• Cylinder Height (Backset): 31/32” and 1-1/8” only.
• Case: Steel with corrosion-resistant plating. Measures 1” x 6” x depth (depth varies with cylinder height).
• Bolts: 15/32” x 5/8” x 2-1/8” with 5/8” throw. Six-ply laminated steel with eight plys within case. Center ply has Alumina-Ceramic core to deter hacksaw attack.
• Strike: See back page for dimensions of strike slot which can be cut in metal thresholds. 4006 strike is available separately, with stainless steel trim plate and plastic box.
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
• Options: Specify either 31/32” or 1-1/8” cylinder height (see dash table on catalog page). 4006 strike and cylinder(s) available separately, if required.
• Standard Package:
• Individually boxed with machine screws for mounting. Cylinders and/or thumbturns are available separately. Shipping weight: 1-1/2 lbs.

Tamper-proof with an armored faceplate, it protects with a minimum threshold strike opening.
