The 4530 Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. 4530 Deadlatches are designed to fit without alteration, the stile cutout for older MS1850 Deadlocks and discontinued 4250 Deadlatches of same backset. Turn key or operate handle to retract spring-loaded Latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Uses any standard mortise cylinder with MS cam. Standard strike furnished is 4901-01 for flat jamb. Available in three cylinder backsets, 7/8 In., 31/32 In. and 1-1/8 In.. Individually boxed with strike and machine screws for mounting. Cylinders, paddles, and handles available separately.

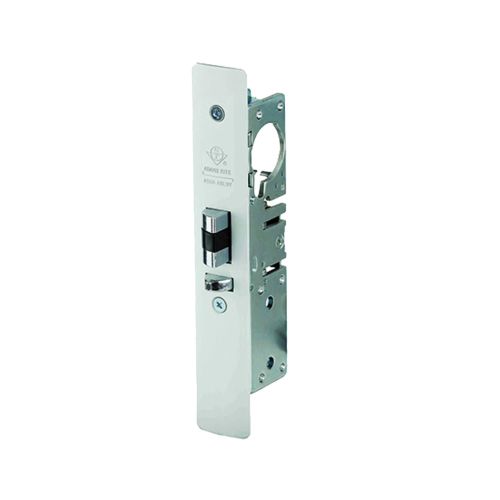

4530-35-101-628 Adams Rite Locks, Cylinders, Cores, Keyblank
Regular Price $174.00 -50% Special Price $87.70
Availability: 19 available for order
SKU
ADA100453035101628
Standard Duty Retrofit Deadlatch, Flat Faceplate, 1-1/8 In. Backset, 4-5/8 In. Flat Mortised Strike, LH or RHR, Satin Aluminum
Description
Specifications
| Series | 4530 Standard Duty Deadlatch |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | Adams Rite |
| BAA Qualified | Yes |
| Base Material | Aluminum |
| Installation | Commercial |
| Limited Warranty | 5 Years |
| Origin | USA |
| Cylinder Type | Less Cylinder |
| Handing | Field Reversible |
| Bolt Projection | 1/2" |
| Door Thickness | 1-3/4" - 2" |
| Function | Narrow Stile Latch Lock |
| Lock Face Size | 7-13/32" x 1-1/4" |
| Screws | Machine |
| Std. Strike Type | Mortise |
Details
Designed to retrofit into the prep of older MS1850 Deadlocks and 4250 Deadlatches.
- Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
- Cylinder Backset: 7/8”, 31/32”, or 1-1/8” only
- Case: Measures 1” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
- Latchbolt: 1/2” x 1” x 1/2” throw. All metal with hardened steel internal pins. Handing is reversible without special tools.
- Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry.
- FaceplateF: Measures 1-1/4” x 7-13/32”.
- Strikes: Standard strike furnished is 4901-01 for flat jamb. For dimensions of this as well as radiused and/or short strikes see ACCESSORIES.
- Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
- Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering. For information on handles and paddles see TRIM.
- Standard Package: Individually boxed with strike and machine screws for mounting. Cylinders, paddles, and handles available separately. Shipping weight: 1-1/4 lbs.
The 4530 Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times.
