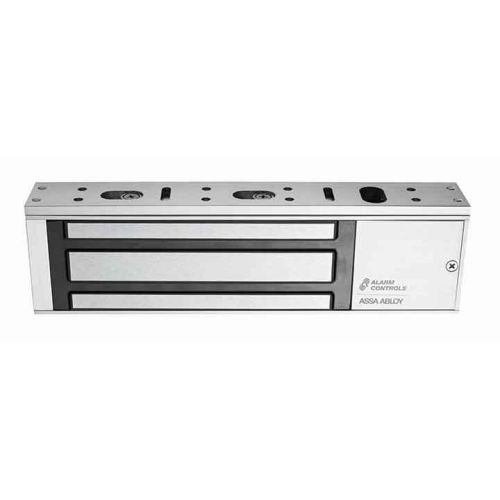

Alarm Controls 1200S Single Magnetic Lock

Standard Features

• 1200S Standard model
• 1200L Magnetic lock with LED status indicator
• 1200LB Magnetic lock with LED status indicator, bond sensor, and door status sensor
• Built-in arc suppression
• Instant release, no hysteresis
• Self-drilling TEC screws
• Non-aluminum parts are plated to resist corrosion
• E-Z mount header bracket and template provided for easy installation, no special tools required
• Can be used with any access control system
• Clear anodized (US28) finish standard
• Limited lifetime warranty

Options

• DURO Duranodic finish (US 40) available, specify when ordering
• Dress covers in polished chrome and brass available. See "Magnetic LockAccessories" for options.

Specifications

Certifications & Listings

• UL 294 listed
• UL 10C fire rated
• CAN/ULC-S104 fire door conformant
• UL 864 listed
• CAN/ULC-S527 listed

Holding Force: 1200 lbs

Dimensions:

• Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W
• Armature size: 7-1/4" L x 2-3/8" H x 5/8" W

Electrical

• 12 or 24 VDC, field selectable
• Current draw: 505 mA at 12 VDC, 260 mA at 24 VDC
• 1200LB bond sensor has SPDT 3A relay contacts

Operating Temperature: +14 to +131F [-10 to +55C]
