Trilogy cylindrical and mortise locks with privacy/lock down pushbutton on inner door (mortise & cylindrical pin or pin/prox models) provide advanced keyless entry DL4500 Similar to the DL3200 electronic door lock features plus: 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit trail Privacy Pushbutton - Push button on inside door to temporarily lock-out keypad codes (programmable option) Occupied and multi-status LED indicator, flashes when privacy session is active Self-stick instructional signage, supplied (bilingual) Keypad or PC programming/reporting Right- or left-hand, classroom or deadbolt function models 1-3/8 In. mortise cylinder & ASA strike, matching function, supplied. 5AA battery-pak operated; 60,000 cycles, typ. 5 Architectural finishes (US3 polished brass, 26 polished chrome, 26D satin chrome, 5 antique brass, 10B duronodic) Weatherproof -31 Deg. to +151 Deg. F (-35 Deg. to +66 Deg. C)

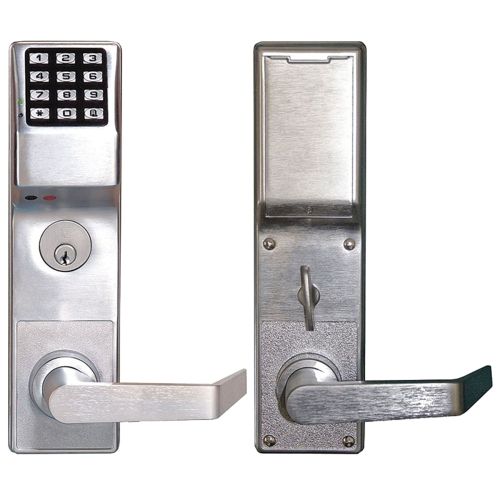

DL4500DBL US26D Alarm Lock Integrated and Pushbutton
Regular Price $1,826.92 -54% Special Price $838.92
Availability: 30 available for order
SKU
ALA100DL4500DBLUS26D
Pushbutton Mortise Lock with Deadbolt, 2000 Users, 40000 Event Audit Trail, Weatherproof, Straight Lever, Satin Chrome Finish, Left-Handed or Right-Hand Reverse
Description
Specifications
| Series | DL4500 Mortise Privacy Pin Locks |
|---|---|
| Vendor | Alarm Lock |
| Manufacturer | Alarm Lock |
| Users | 2000 |
| Application | Weatherproof |
| Color | Satin Chrome |
| BAA Qualified | No |
| Base Material | Brass or Bronze |
| Fire Rating | 3 Hours {A} |
| Installation | Commercial |
| Finish Family | Matte Silver |
| Cylinder Type | Mortise Cylinder |
| Keypad Type | Electronic |
| Handing | Left-Handed or Right-Hand Reverse |
| Latch Backset Dimension | 2-3/4" |
| Lever/Knob Design Family | Straight Return Lever |
| Lock Platform | Mortise Lock with Keypad Trim |
| Door Thickness | 1-3/8" to 1-7/8" |
| Programmer | Optional |
| Power | Battery Pack |
| Reader Technology | Keypad Only |
| Series Name | Trilogy |
| Software | Optional |
| Std. Strike Type | Mortise Strike |
| UL Listing | UL Listed |
Details
Pushbutton Mortise Lock with Deadbolt.
Trilogy cylindrical and mortise locks with privacy/lock down pushbutton on inner door (mortise & cylindrical pin or pin/prox models) provide advanced keyless entry DL4500 Similar to the DL3200 electronic door lock features.
