PDL3500 Series mortise lock with built in HID prox reader, similar to DL3500 Series, but with: 2000 user codes (3-6 digits) and/or HID prox cards/fobs Multilevel security - Master; manager; supervisor; basic users Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC -also- downloadable from PC or prox enroller tool PC programming/reporting Quick passage mode (without being in program mode) Program data transferred to lock via AL-PCI2 or AL-DTMIII 5AA battery-pak operated; 75,000 cycles, typ. 5 Architectural finishes Weatherproof -31deg to +151degF (-35deg to +66degC)

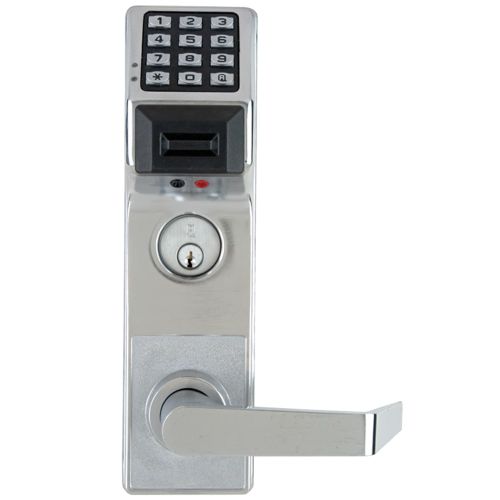

PDL3500CRR US26D Alarm Lock Integrated and Pushbutton
Regular Price $3,103.51 -54% Special Price $1,425.13
Availability: 14 available for order
SKU
ALA100PDL3500CRRUS26D
Pushbutton Classroom Mortise Lock, with Prox Reader, 300 Users, 40,000 Event Audit Trail, Weatherproof, Straight Lever, Right Hand or Left Hand Reverse, Satin Chrome
Description
Specifications
| Series | DL3500 Mortise Pin Locks |
|---|---|
| Vendor | Alarm Lock |
| Manufacturer | Alarm Lock |
| Users | 300 |
| Color | Satin Chrome |
| Base Material | Brass or Bronze |
| Fire Rating | 3 Hours {A} |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 2 Years |
| Finish Family | Matte Silver |
| Cylinder Type | Mortise Cylinder |
| Keypad Type | Electronic |
| Lock Platform | Mortise Lock with Proximity Keypad Trim |
| Door Thickness | 1-3/8" to 1-7/8" |
| Programmer | Optional |
| Power | Battery Pack |
| Reader Technology | 125kHz Proximity with Keypad |
| Series Name | Trilogy |
| Software | Optional |
| Std. Strike Type | Mortise Strike |
Details
Trilogy Mortise: High security digital locks.
- 300 User codes: Master, manager, supervisor & basic users
- Fingertip or Windows PC-programmable
- Real time clock enables up to 500 scheduled events and holiday schedules
- 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
- Long-life battery pak for 80,000 cycles, typical and low-battery alert
- Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
- 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
- 40,000 event audit trail log
- 500 scheduled events, e.g., lock or unlock
- PC programming/reporting
- Quick passage mode (without being in program mode)
- Program data transferred to lock via AL-PCI2 or AL-DTMIII
- 5AA battery-pak operated; 75,000 cycles, typical
- 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
- Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
Trilogy high security mortise locks with and without prox DL3500 Series Mortise Locks 300 User codes.
