Altronix-AL1012ULXB Power Supply Charger

Special Price $177.61

Regular Price $323.13 -45%

Availability: Available for Order

SKU

ALT-AL1012ULXB

PWR.SUPP/CHARGER,12VDC@10AMP,115VAC INPU

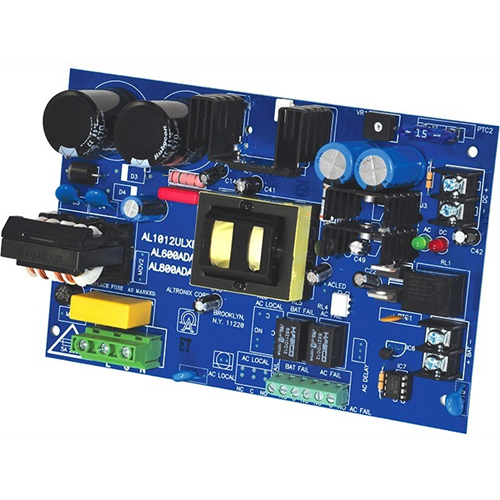

Power Supply Charger, Single Fused Output, 12VDC @ 10A, 115VAC, Board

More Information
Manufacturer Part Number	AL1012ULXB
Features	Input Input 115VAC, 60Hz, 2.6A. Input fuse rated @ 5A/250V. Output 12VDC output. 10A continuous supply current. Output fuse rated @ 15A/32V. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Backup Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 61 BTU/Hr. System AC input VA requirement: 299VA.

Input
- Input 115VAC, 60Hz, 2.6A.
- Input fuse rated @ 5A/250V.
Output
- 12VDC output.
- 10A continuous supply current.
- Output fuse rated @ 15A/32V.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Electrical
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 61 BTU/Hr.
- System AC input VA requirement: 299VA.
