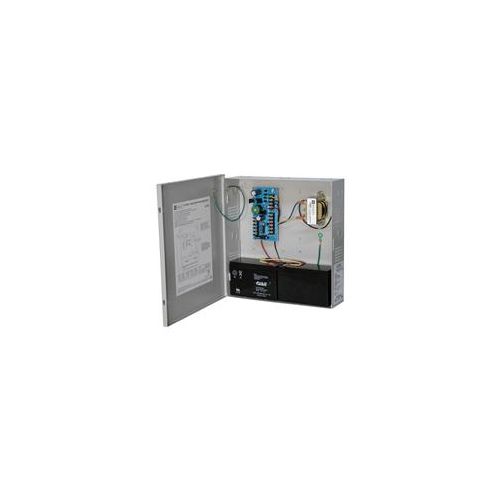

Altronix-AL175ULX Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1.75A, 115VAC, BC300 Enclosure
Altronix-AL175ULX Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1.75A, 115VAC, BC300 Enclosure
Special Price $160.51
Regular Price $292.01 -45% Availability: Available for Order
PWR.SUPP./CHARGER-12 OR 24VDC@1.75AMP,W/
Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1.75A, 115VAC, BC300 Enclosure
More Information | Manufacturer Part Number | AL175ULX |
|---|
| Features |
-
Input
- Input 115VAC, 60Hz, 0.6A.
- Access control trigger input.
-
Output
- 12VDC or 24VDC selectable outputs.
- 1.75A supply current.
- Two (2) Class 2 Rated power limited outputs.
- Fail-Safe/Fail-Secure lock output (switched).
- Auxiliary power output (unswitched).
- PTC protected outputs, rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
-
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
-
Supervision
- AC fail supervision (form "C" contacts).
- Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
-
Visual Indicators
- AC input and DC output LED indicators.
-
Temperature
- Operating 0ºC to 49ºC (32ºF to 120ºF).
- Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
-
BTU/Hr. (approx.):
- 12VDC: 11 BTU/Hr.
- 24VDC: 22 BTU/Hr.
- System AC input VA requirement: 69VA.
|
|---|
-
Input
- Input 115VAC, 60Hz, 0.6A.
- Access control trigger input.
-
Output
- 12VDC or 24VDC selectable outputs.
- 1.75A supply current.
- Two (2) Class 2 Rated power limited outputs.
- Fail-Safe/Fail-Secure lock output (switched).
- Auxiliary power output (unswitched).
- PTC protected outputs, rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
-
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
-
Supervision
- AC fail supervision (form "C" contacts).
- Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
-
Visual Indicators
- AC input and DC output LED indicators.
-
Temperature
- Operating 0ºC to 49ºC (32ºF to 120ºF).
- Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
-
BTU/Hr. (approx.):
- 12VDC: 11 BTU/Hr.
- 24VDC: 22 BTU/Hr.
- System AC input VA requirement: 69VA.
