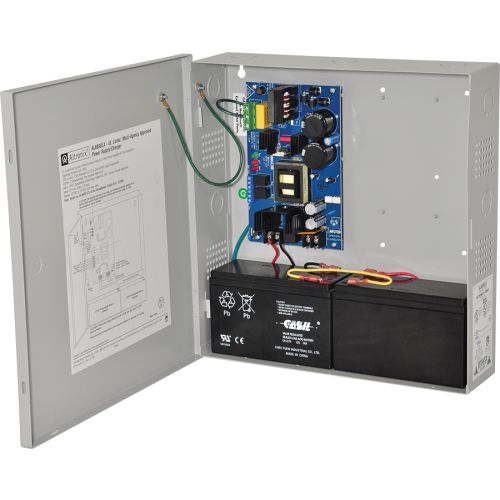

Altronix-AL600ULM Multi-Output Power Supply/Charger
Special Price $279.34 Regular Price $508.21 -45%
Availability: Available for Order
SKU
ALT-AL600ULM
PWR.SUPP./CHARGER;12 OR 24VDC@ 6AMP,5 OU
Access Power Distribution Module w/ Power Supply/Charger, 5 PTC Class 2 Outputs, 12/24VDC @ 6A, FAI, 115VAC, BC300 Enclosure
| Manufacturer Part Number | AL600ULM |
|---|---|
| Features | Input: • Input 115VAC, 60Hz, 3.5 amp. • Input fuse rated @ 3.5 amp/250V. •Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C. supervised trigger input and polarity reversal trigger input. Output: • 12VDC or 24VDC selectable outputs. • 6 amp supply current. • Five (5) PTC protected Class 2 Rated power limited outputs, rated @ 2 amp. • Output relay energizes when unit is triggered (form “C” contact rated 1 amp @ 28VDC). • Filtered and electronically regulated output. • Short circuit and thermal overload protection. Battery Backup: • Built-in charger for sealed lead acid or gel type batteries. • Automatic switch over to stand-by battery when AC fails. • Maximum charge current 0.7 amp. Supervision: • AC fail supervision (form “C” contacts). • Low battery supervision (form “C” contacts). • Battery presence supervision (form “C” contacts). • Power fail supervision relay (form “C” contacts). Visual Indicators: • AC input and DC output LED indicators (power supply board). • Red LEDs indicate condition of power outputs (multi-output board). • Power & input trigger LEDs (multi-output board). Electrical: • Operating temperature: 0º C to 49º C ambient. • BTU/Hr.: - 12VDC: 36.85 BTU/Hr. - 24VDC: 73.7 BTU/Hr. • System AC input VA requirement: 402.5VA. Mechanical: • Enclosure Dimensions (H x W x D approx.): 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm) - Accommodates up to two (2) 12VDC/7AH batteries. • Product weight (approx.): 7.9 lbs. (3.58 kg). • Shipping weight (approx.): 8.9 lbs. (4.04 kg). |
Write Your Own Review
Input:
• Input 115VAC, 60Hz, 3.5 amp.
• Input fuse rated @ 3.5 amp/250V.
•Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C. supervised trigger input and polarity reversal trigger input.
Output:
• 12VDC or 24VDC selectable outputs.
• 6 amp supply current.
• Five (5) PTC protected Class 2 Rated power limited outputs, rated @ 2 amp.
• Output relay energizes when unit is triggered (form “C” contact rated 1 amp @ 28VDC).
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Maximum charge current 0.7 amp.
Supervision:
• AC fail supervision (form “C” contacts).
• Low battery supervision (form “C” contacts).
• Battery presence supervision (form “C” contacts).
• Power fail supervision relay (form “C” contacts).
Visual Indicators:
• AC input and DC output LED indicators (power supply board).
• Red LEDs indicate condition of power outputs (multi-output board).
• Power & input trigger LEDs (multi-output board).
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• BTU/Hr.: - 12VDC: 36.85 BTU/Hr. - 24VDC: 73.7 BTU/Hr.
• System AC input VA requirement: 402.5VA.
Mechanical:
• Enclosure Dimensions (H x W x D approx.): 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm) - Accommodates up to two (2) 12VDC/7AH batteries.
• Product weight (approx.): 7.9 lbs. (3.58 kg).
• Shipping weight (approx.): 8.9 lbs. (4.04 kg).
