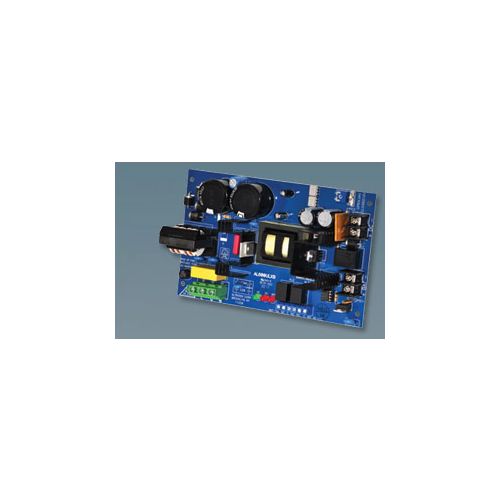

Altronix AL600ULXB Power Supply Charger

Special Price $177.61

Regular Price $323.13 -45%

Availability: Available for Order

SKU

ALT-AL600ULXB

POWER SUPPLY/CHARGER,UL,115VACINPUT BOAR

Power Supply Charger, Single Class 2 Output, 12/24VDC @ 6A, 115VAC, Board

More Information
Manufacturer Part Number	AL600ULXB
Features	Input Input 115VAC, 60Hz, 3.5A. Output 12VDC or 24VDC selectable output. 6A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Backup Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 37 BTU/Hr. 24VDC: 74 BTU/Hr. System AC input VA requirement: 402.5VA.

Input
- Input 115VAC, 60Hz, 3.5A.
Output
- 12VDC or 24VDC selectable output.
- 6A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Electrical
- Relative Humidity 85% +/- 5%.
- System AC input VA requirement: 402.5VA.
