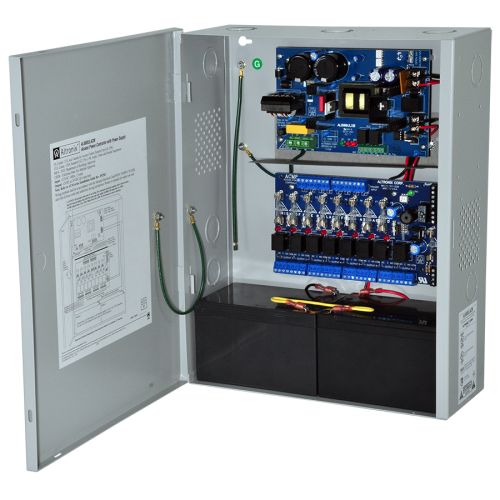

Altronix-AL600ULXPD16CB Multi-Output Power Supply/Charger
Altronix-AL600ULXPD16CB Multi-Output Power Supply/Charger
Special Price $284.13
Regular Price $516.92 -45% Availability: Available for Order
POWER SUPPLY/CHARGER,12VDC OR24VDC@6AMP,
Power Supply Charger, 16 PTC Class 2 Outputs, 12/24VDC @ 6A, 115VAC, BC400 Enclosure
More Information Manufacturer Part Number | AL600ULXPD16CB |
Features |
- Input 115VAC, 60Hz, 3.5 amp.
- 12VDC or 24VDC selectable output.
- 6 amp continuous supply current.
- Sixteen (16) Class 2 Rated PTC protected power limited outputs.
- Outputs are rated @ 2.5 amp.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Maximum charge current 0.7 amp.
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
- AC input and DC output LED indicators.
- Operating temperature: 0° C to 49° C ambient.
- 36.85 or 73.70 BTU/Hr.
- System AC input VA requirement: 402.5VA.
- Lifetime Warranty
|
---|
- Input 115VAC, 60Hz, 3.5 amp.
- 12VDC or 24VDC selectable output.
- 6 amp continuous supply current.
- Sixteen (16) Class 2 Rated PTC protected power limited outputs.
- Outputs are rated @ 2.5 amp.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Maximum charge current 0.7 amp.
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
- AC input and DC output LED indicators.
- Operating temperature: 0° C to 49° C ambient.
- 36.85 or 73.70 BTU/Hr.
- System AC input VA requirement: 402.5VA.
- Lifetime Warranty
