Arrow D Series deadlocks are engineered to perform under the most extreme conditions where security is critical. Our Grade 1 extra heavy duty deadlock surpasses the demands of industrial, institutional and commercial applications.

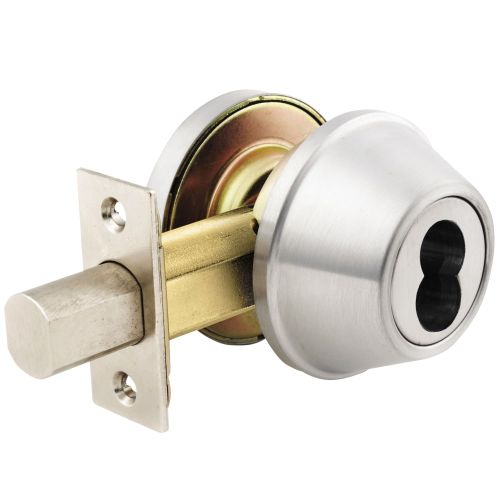

D71-IC1 26D Arrow Locks, Cylinders, Cores, Keyblank
Regular Price $273.00 -52% Special Price $131.48
Availability: 25 available for order
SKU
ARR100D71IC126D
Grade 2 Single Cylinder Deadbolt, SFIC Prep Less Core, Concealed Mounting Screws, Satin Chrome Finish, Non-Handed
Description
Specifications
| Series | Arrow D Series Deadbolts |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | Arrow |
| ANSI | A156.36 |
| Grade | Grade 1 |
| Installation | Commercial |
| Finish Family | Matte Silver |
| Cylinder Type | SFIC Prep Less Core |
| Handing | Non-Handed |
| Bolt Projection | 1" |
| Function | 71IC-Single Cylinder Deadbolt |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Std. Strike Type | Flat |
Details
Arrow D Series deadlocks are engineered to perform underthe most extreme conditions where security is critical.
- Housing–Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions. Deadbolt–1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.
- Backset–2-3/8" (60.32mm), 2-3/4" (69.85mm).
- Deadbolt fronts–2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset. Drive-in deadbolts are available.
- Doors–1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.
- Strikes–Supplied standard with the #346 wood frame strike and BX91D strike reinforcement. The #345 metal frame strike is optional.
- Handing–All functions are reversible.
- Cylinder, Standard–Solid brass, Arrow “A” keyway, 6 pin cylinder. Supplied with two nickel silver keys. Available in Schlage CS keyway and other competitive keyways.
- Cylinder Options–Accepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Best ™ or Falcon™ type cores (except the E41).
The Arrow D series is a Grade 1 extra heavy duty deadlock that suprasses the demands of industrial, institutional and commercial applications.
