Arrow MK Series offer the designer, architect and contractor simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.
MK12-BD-26D-LC Arrow Locks, Cylinders, Cores, Keyblank
Regular Price $168.66 -52% Special Price $81.10
Availability: Available for Order
SKU
ARR100MK12BD26DLC
MK12-BD-26D-LC Arrow Locks, Cylinders, Cores, Keyblank is available to buy in increments of 1

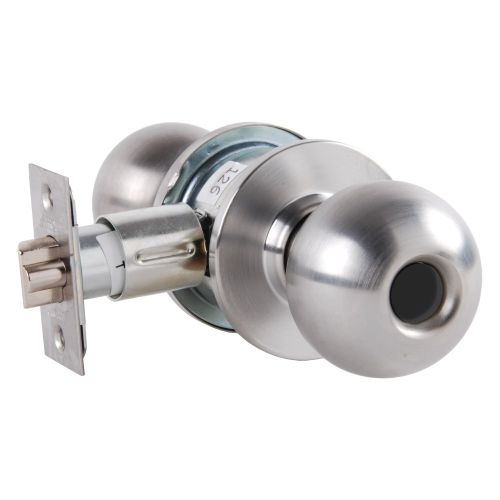

Grade 2 Storeroom Cylindrical Lock, Ball Knob, Conventional Less Cylinder, Satin Chrome Finish, Non-handed
Description
Specifications
| Series | MK Series Grade 2 Cylindrical Knob Locks |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | Arrow |
| ANSI | F86 |
| Base Material | Brass, Bronze |
| Fire Rating | 3 Hours {A} |
| Grade | Grade 2 |
| Installation | Commercial |
| Limited Warranty | 1 Year Warranty |
Details
The Arrow MK Series has a clear design and is a simple solution to accessibility requirements.
- Lock Chassis – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/8" (60.32mm) standard. 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available.
- Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm). Latch – Brass with 1/2" (12.7mm) throw.
- Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225mm) bore in edge of door is required.
- Latch Front – Brass, bronze or stainless steel. Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in 2” (50.8mm).
- Strike – Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm). All strikes have a 1-1/4" (31.75mm) lip to center dimension.
- Handing– Reversible.
- Cylinder, Standard – Solid brass 6 pin cylinder with Arrow “A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock. Available in Schlage CS keyway and other competitive keyways.
The MK Series is available in several finishes and functions that make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.
