The RK Series has been enhanced to offer a wide variety of finishes and functions. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
RK01-BD-32D Arrow Locks, Cylinders, Cores, Keyblank
Regular Price $75.08 -60% Special Price $29.79
Availability: 151 available for order
SKU
ARR100RK01BD32D
RK01-BD-32D Arrow Locks, Cylinders, Cores, Keyblank is available to buy in increments of 1

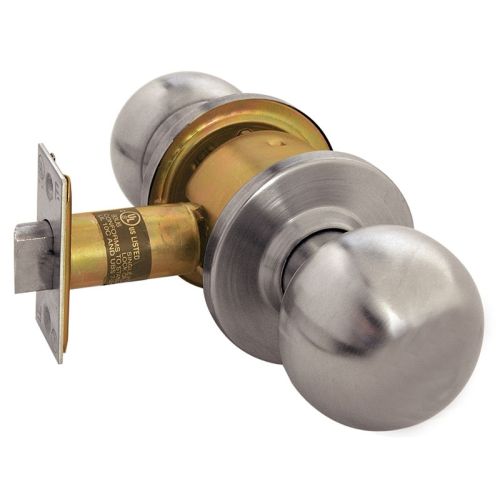

Grade 2 Passage Cylindrical Lock, Ball Knob, Non-Keyed, Satin Stainless Steel Finish, Non-handed
Description
Specifications
| Series | RK Series Grade 2 Cylindrical Knob Locks |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | Arrow |
| ANSI | F75 |
| Base Material | Stainless Steel |
| Fire Rating | 3 Hours {A} |
| Grade | Grade 2 |
| Installation | Commercial |
| Limited Warranty | 5 Year Warranty |
Details
The Arrow RK Series offers a wide variety of finishes and functions.
- Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm).
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
- Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).
- Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
- Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
- Keys – 2 brass keys.
- Handing – Non-handed.
- Thru-bolts – Removable thru-bolts standard on RL Series.
- Packaging– 10 per case.
- Warranty – Five Year Mechanical Warranty
The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
