AWID MM-6800

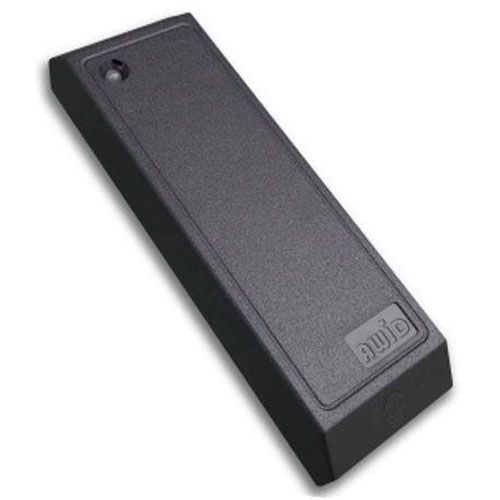

Product Overview AWID's MM-6800 Proximity Card Reader provides exceptional reading distance in a slim, compact enclosure for Access Control applications. With a read range up to 8 inches, the MM-6800 reader delivers excellent performance without compromising quality, durability, attractive appearance, and ease of installation. Installation The MM-6800 reader is designed to fit perfectly on the 1-3/4 inch standard metal door frame or window mullion. The metal-compensation that is built into every MM-6800 reader assures minimum loss of read range when the reader is mounted on a metal surface. The MM-6800 reader also can be fastened by 2 screws on any wall or other surface. Installation may be indoors or outdoors, exposed to weather. Features The MM-6800 reader contains (a) a 3-color LED, (b) a 4 kilohertz beeper, and (c) a "hold" circuit. Both LED and beeper are controlled by the reader itself. All three functions can be controlled externally by the host system. The LED can indicate access-granted by the host. The beeper can be used as an alarm that prevents further card reads until the alarm condition is cleared. The "hold" circuit delays code transmission from the reader until the host requests it. Testing The reader is self-testing - using its own LED and beeper, it needs no interface to a controller to assure the installer and cardholder of correct performance. The reader is also self- diagnostic - if DC power is unstable, or if electrical noise is induced in the cable, the reader resets and its LED changes to amber. Operation AWID's proximity readers use a re-present mode that requires that the user remove the card from the reader's field before the card can be read again. This feature eliminates multiple reads from a single presentation of the card. The MM-6800 has both Wiegand data interface for basic 4-wire connection (7 wires when all features are controlled), and also RS-232 serial interface. Code transmission from both interfaces is simultaneous. Environment The MM-6800 reader is ready for challenging applications. The ABS plastic one-part enclosure, fully potted at the back surface with epoxy resin, stands up to physical abuse and adverse environment. Credentials All of AWID's 125 kilohertz proximity credentials may be used with the MM6800 reader. This includes clamshell and graphics-quality cards, keytags, hangtags, and adhesive wafers. Read range varies with the credential type.
