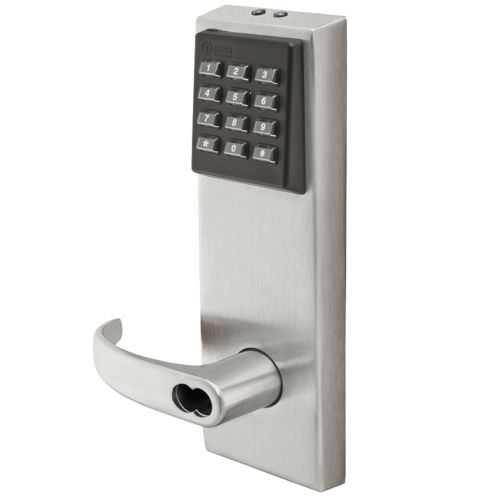

9KZ37DV14KPS3626 BEST Electric Lock

Mechanical Specifications

• Materials – Internal parts are brass, zinc or corrosion-treated steel.
• Chassis – 2 1⁄16” diameter to fit 2 1⁄8” diameter hole in door.
• Strike – S3 Brass or bronze, 4 7⁄8” H x 1 1⁄4” W x 3⁄32” D. ANSI A115.1. STK Brass or bronze, 2 3⁄4” x 1 1⁄8” x 3⁄32”. Fits standard door frame cut out as specified in ANSI A115.3
• Backset – 2 3⁄4” standard, 3 3⁄4” and 5” available.Door thickness – For doors 1 3⁄4” - 2 1⁄4” thick.
• Installation – Lock dimensions requires modified door prep ANSI A156.2 Series 4000, Grade 1 to mount housing.
• Latchbolt – 9⁄16” throw.
• Escutcheon – Dimensions: 10 1⁄2” H x 3 5⁄16” W x 1” D sloping down to 3⁄4”.
• Lever – Made from high-quality zinc alloy. Body is approximately 1 5⁄8” in diameter: Handle is approximately 4 3⁄4” in length (from center-line of chassis). (#14 and #15 conform to California Titles 19 and 24.)
• Certification – UL listed For GYQS Electrically controlled single point locks or latches for use on 3 hour A label doors. The listing applies for both U.S. and Canadian applications.

Electronic Specifications

• Primary power – 4 AA batteries (standard). 8 AA batteries for longer life, or 4 cell shrink wrapped battery pack (optional) *Two phase battery warning system is given via audible and visual responses reducing the potential for complete power loss.
• Memory backup – Maintains programming indefinitely.
• Relative humidity – 10% to 90% non-condensing.
• Shock – 2000 Gs RMS (maximum door-slam shock)
• Compliance – Compliance to FCC, Canadian, and European EMC requirements; for interference FCC Class A digital apparatus

Keypad Specifications

• Bezel size – 25⁄8” x 33⁄8”
• Material – Bezel–high impact ABS, Keypad–encapsulated elastomer.
• ESD Protection – 15KV.
• Button operating life – 3-5 million cycles.
• Button operating force – 3.88 ounces.
• Sealing – Weatherproof lens and gasket provides protection for outdoor use (Usable in most environmental/exterior applications)
