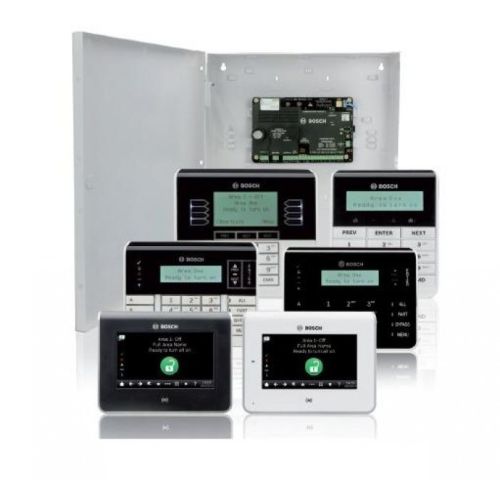

Bosch B4512-D-930 Intrusion Alarm System Control Panel Kit
Kit Includes B4512, B11, CX4010, B930.
The B4512 Control Panel integrates intrusion and residential fire, providing one simple user interface for both systems. The B4512 provides up to 28 individually identified points that can be split into 2 areas. The control panel includes a built-in Ethernet port for IP network communications, and is compatible with modules that send events to selected public switched telephone network (PSTN), IP network, or cellular network destinations through four programmable route groups. With the B4512, you can monitor doors, windows, and motion within areas like showrooms or those that hold inventory. Each user can have a personalized passcode, a wireless keyfob, and a credential to control the system.
The B11 Small Control Panel Enclosure houses many Bosch control panels and modules. The enclosures are compatible with an enclosure tamper switch (D110 or ICP-EZTS), lock and key set (D101), and can hold one battery (up to 7 Ah).
The CX4010 is for use in North America. It converts 110 VAC primary voltage input to 18 VAC, 22 VA secondary input.
The B930 ATM Style Alphanumeric Keypad (SDI2) is a SDI2 bus compatible device. Each keypad has user adjustable options such as volume and display brightness. The B930 shows five-line system messages for all areas.
| Manufacturer Part Number | B4512-D-930 |
|---|---|
| Features | B4512 Features:
B11 Features:
CX4010 Features:
B930 Features:
|
B4512 Features:
- Supports up to 28 points using a combination of hardwired or wireless points for installation flexibility and 2 areas with perimeter and interior control
- On-board Ethernet port for Conettix IP alarm communication and remote programming, compatible with modern IP networks including IPv6/IPv4, Auto-IP and Universal Plug and Play
- Installer-friendly features including on-board USB for easy on-site RPS programming, plus plug-in PSTN and Cellular communication modules for simple installation and future proof upgrades
- Notifications with email and text messaging, and the Remote Security Control app for Android and iOS mobile devices
B11 Features:
- Easy to install standoff location for mounting supporting modules
- Made with cold-rolled steel with a white matte finish
- Easy access locations for battery placement
CX4010 Features:
- For use in North America
- It converts 110 VAC primary voltage input to 18 VAC, 22 VA secondary input
B930 Features:
- 5-line ATM style LCD display with up to 32 character point, user, and area names
- Simple menu-style user interface with dedicated function buttons for common commands
- Programmable keypad shortcuts and situation sensitive on-screen help makes system operation simple and easy
