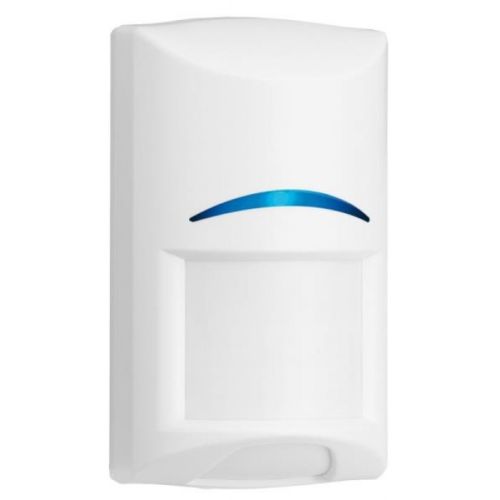

Bosch ISC-BDL2-WP12G Blue Line Gen2 TriTech Motion Detectors

First Step Processing (FSP)

First Step Processing (FSP) almost instantly responds

to human targets without producing false alarms from

other sources. FSP adjusts the detector's sensitivity

based on signal amplitude, polarity, slope, and timing.

This eliminates the need for the installer to select the

sensitivity level, thus improving ease of installation and

reliability.

Pet‑friendly Selectivity (‑WP models only)

The installer can turn pet immunity on or off based

upon application requirements. When pet immunity is

turned off, the detector provides superior catch

performance identical to the non‑pet models. When

pet immunity is turned on, the detector can

distinguish between signals caused by humans and

signals caused by pets. It ignores signals caused by

one or two pets up to 45 kg (100 lb) or numerous

rodents.

Microwave Noise Adaptive Processing

Microwave Noise Adaptive Processing adjusts to

background disturbances, reducing false alarms

without sacrificing intruder detection.

Dynamic Temperature Compensation

The detector intelligently adjusts its sensitivity so that

it can identify human intruders at virtually any

temperature.

Wall-to-Wall Coverage

An improved lookdown zone and coverage range of

12 m x 12 m (40 ft x 40 ft) provide wall-to-wall

coverage.

Self-locking Enclosure

The sliding self‑locking enclosure has an integrated

bubble level and custom gap‑free, lift‑gate style

terminal blocks to make installation easier.
