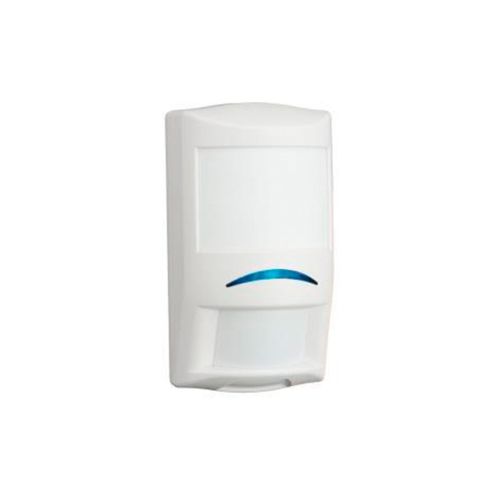

Bosch ISC-PPR1-WA16G Passive Infared Detector
The ISC-PPR1-WA16x Professional Series PIR Detectors with Anti-mask are exceptionally suited for commercial indoor applications. Sensor data fusion technology ensures that the detectors send alarm conditions based on precise information. Tri-focus optics eliminate coverage gaps and respond efficiently to intruders. The powerful combination of unique features in the Professional Series delivers superior catch performance and virtually eliminates false alarms. The self-locking two-piece enclosure, built-in bubble level, flexible mounting height, and three optional mounting brackets simplify installation and reduce service time.
| Manufacturer Part Number | ISC-PPR1-WA16G |
|---|---|
| Features | Electrical Power Requirements Voltage (Operating): 9 VDC to 15 VDC Current (Maximum): 26 mA. Current (Standby): 18 mA Outputs Relay: Solid state relay, normally-closed (NC) contacts power supervised. 3 W, 125 mA, 25 VDC, resistance < 10 Ω. Tamper: Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum. Connect tamper circuit to 24-hour protection circuit. Trouble: Solid‑state relay normally-closed (NC) contacts. Mechanical Enclosure Design Color: White Dimensions: 5.0 in. x 2.75 in. x 2.25 in. (127 mm x 69 mm x 58 mm) Material: High-impact ABS plastic Indicators Alarm Indicators: • Blue LED for alarms Detection Zones Zones: 86 Frequency Information Radio Frequency Interference (RFI) immunity: No alarm or setup on critical frequencies in the range from 26 MHz to 1 GHz at 50 V/m. Environmental Relative Humidity: 0 to 95%, non-condensing Temperature (Operating and Storage): -20°F to +130°F (-29°C to +55°C) For UL Certificated installations, +32°F to +120°F (0°C to +49°C) Environmental Class II EN 50130-5 Protection Rating: IP41, IK04 (EN 60529, EN 50102) |
Electrical
Power Requirements
Voltage (Operating): 9 VDC to 15 VDC
Current (Maximum): 26 mA. Current (Standby): 18 mA
Outputs
Relay: Solid state relay, normally-closed (NC) contacts
power supervised.
3 W, 125 mA, 25 VDC, resistance < 10 Ω.
Tamper: Normally-closed (NC) contacts (with cover on)
rated at 25 VDC, 125 mA maximum.
Connect tamper circuit to 24-hour protection circuit.
Trouble: Solid‑state relay normally-closed (NC) contacts.
Mechanical
Enclosure Design
Color: White
Dimensions: 5.0 in. x 2.75 in. x 2.25 in.
(127 mm x 69 mm x 58 mm)
Material: High-impact ABS plastic
Indicators
Alarm Indicators:
• Blue LED for alarms
Detection Zones
Zones: 86
Frequency Information
Radio Frequency Interference (RFI) immunity:
No alarm or setup on critical frequencies in the range from
26 MHz to 1 GHz at 50 V/m.
Environmental
Relative Humidity: 0 to 95%, non-condensing
Temperature (Operating and Storage):
-20°F to +130°F (-29°C to +55°C)
For UL Certificated installations, +32°F to +120°F (0°C to
+49°C)
Environmental Class II EN 50130-5
Protection Rating: IP41, IK04 (EN 60529, EN 50102)
