Corbin Russwin CLX33905 NZD 626 Fail Secure Lever is available to buy in increments of 1

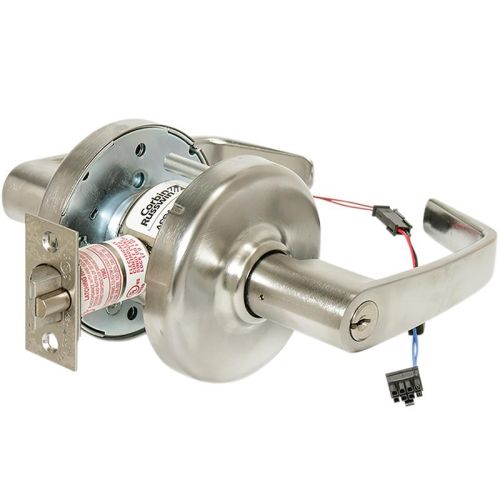

Corbin Russwin CLX33905 NZD 626. For access control, the CLX33900 Series Electrified Cylindrical lockset utilizes the proven CLX3300 series lockset and features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CLX33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.
For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.
More Information
Manufacturer Part Number
CLX33905 NZD 626 24AD
Features
Applications
Provides remote locking and unlocking, utilizing the provenCLX3300 Series Cylindrical Lockset. Ideal for door control whereincreased security is necessary at all times, while meeting lifesafety codes.
Stairwell towers
Tenant space
Pharmacies
Computer rooms
High-security areas
Advantages
Utilizes the CL3300 Series Cylindrical Lockset with LeverRelease™ Mechanism• Self-contained integral solenoid allows installation in modifiedcylindrical prep
Minimal power requirements – device is designed to lock orunlock as the situation demands
Available in either 12 or 24VAC/VDC
Mechanical cylinder override• Fail Safe and Fail Secure mode available
Optional M92 Request to Exit (REX) switch
ElectroLynx® 8-pin connector
ElectroLynx®
ElectroLynx®, a new quick-connectfeature of ASSA ABLOY Groupcompanies, takes theguesswork out of installing electrifieddoor hardware products. It’s Hardwiring Made Easy. By using standard “plug and play”connectors, a simple “click” links powerfrom the incoming source to electrifiedlocking products, including hinges,locks, exit devices, magnetic holders, and strikes. What normallytakes an hour or more can be connected in virtually minutes.
Securitron PowerJump™ ICPT
The Securitron PowerJump ICPT Inductive CouplingPower Transfer delivers power contactlessly andinvisibly between the frame and door to powerelectrified hardware on the door. The PowerJumpcan be installed at the latch side or hinge side of the door andtransfers up to 6 watts of power without pins or wires across thedoor gap, eliminating points of vulnerability and wear … and noneed to core drill the door. The PowerJump is field selectable for12VDC or 24VDC systems and is ideal for fail secure applications.The unit can hold electrified latches open in continuous duty orcan momentarily energize the lockset for latch retraction.
