Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire door openings

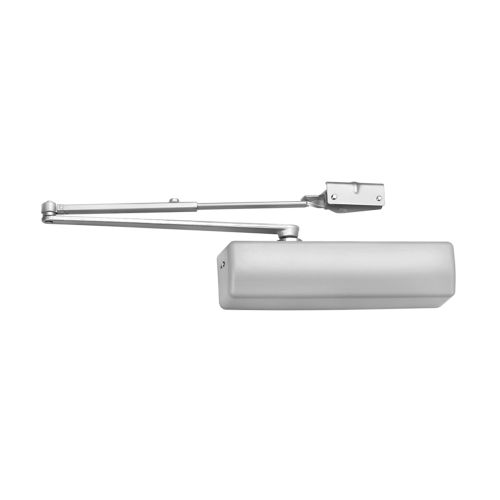

DC6210 A1 689 M54 Corbin Russwin Door Closers and Operator
Regular Price $827.97 -50% Special Price $410.80
Availability: 24 available for order
SKU
COR300DC6210A1689M54
DC6210 A1 689 M54 Corbin Russwin Door Closers and Operator is available to buy in increments of 1
Grade 1 Surface Door Closer, Double Lever Arm Friction Hold Open, Push or Pull Side Mount, Size 1 to 6, Full Cover, Non-Handed, Aluminum Painted
Description
Specifications
| Series | DC6000 Series Door Closers |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | Corbin Russwin |
| Base Material | Varies |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 25 Years |
Details
A variety of features makes this the choice for retrofitting, quick installation, and longevity.
- Spring Power DC6200 closers: multi-sized; fully adjustable sizes 1 through 6. DC6400 closers: sizes 1 through 6; half-size adjustability. For recommended sizes, see page 14.
- Handing Non-handed (with the exception of some arms and accessories).
- Body Cast-iron case with seamless cold headed steel spring tube.
- Arm Standard: forged steel. Arm options pages 8-10.
- Spindle Heat-treated steel with a crowned gear set for increased efficiency.
- Piston 1-3/8" diameter; precision machined, heat-treated steel.
- Springs Chrome silicon wire.
- UL / ULC / UL10c Listed for fire and cycle requirements.
- 15 Million Cycles Witnessed and verified by UL
Corbin Russwin offers a wide variety of arms, tracks and special brackets to meet special header/ frame conditions. The small footprint and unobtrusive cover are additional advantages to a versatile line of closers.
Instructions
- DC6200, DC6400 Regular, Parallel or Top Jamb Mount
- DC6210, DC6410 x HD Parallel Arm (A2, A4, or A5)
- DC6210, DC6410 x HD Parallel Arm (A3)
- DC6210, DC6410 x HD Spring Stop Parallel Arm (A11 or A12)
- DC6200, DC6400 x HD Regular Arm (A10)
- DC6210, DC6410 x HD Parallel Arm (A13)
- DC6230, DC6430 Series - Hinge (Pull) Side Door Application DC6240, DC6440 Series - Opposite to Hing
- Corbin Russwin ADC3210/DC6210/DC6410 Series Closers with A13 Heavy Duty Parallel Arm Installation Instructions
- Corbin Russwin ADC3210/DC6210/DC6410 Series Closers with Heavy Duty Parallel Arms Installation Instructions
- Corbin Russwin DC3200/DC6200/DC6400 Series Closers For Non-Hold Open & A10 Heavy Duty Arm Installation Instructions
- Corbin Russwin DC3200/DC6200/DC6400 Series Closers For Non-Hold Open & A1 Hold Open Arm Installation Instructions
- Corbin Russwin ADC3210/DC6210/DC6410 Series Closers with A3 Heavy Duty Parallel Arm Installation Instructions
- Corbin Russwin DC6210/DC6410 Series A14 Heavy Duty Friction Hold Open Parallel Arm Installation Instructions
