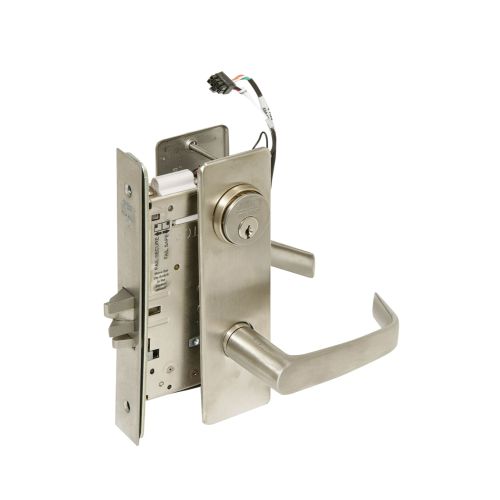

ML20906 NSM 626 SEC M92 Corbin Russwin Electric Lock

Regular Price $2,330.55 -50% Special Price $1,165.95

Availability: Available for Order

SKU

COR300ML20906NSM626SECM92

ML20906 NSM 626 SEC M92 Corbin Russwin Electric Lock is available to buy in increments of 1

Grade 1 Fail Secure Electrified Mortise Lock, Outside Grip Locked when Not Energized, Outside Cylinder Override, NS Lever, M Escutcheon, Request to Exit, Touchbar Monitoring or Signaling, Satin Chrome Finish, Field Reversible

Description

Utilizing the ML2000 Series Grade 1 Mortise Lock with the patented quick reversible latchbolt, the ML20900 Series provides actuator operated remote locking and unlocking. The self contained integral continuous duty aqctuator allows installation in standard mortise prep with slight modification. The ML20900 ECL is ideal for use where increased security is necessary at all times, such as tenant space, pharmacies, computer rooms and high security areas. THe ML20900 Series features Ecoflex Technology, reducing energy consumption up to 96% as certified by GreenCircle. It is field configurable to fail safe or fail secure and operates off 12-24VDC.

Specifications

More Information
Series	ML20900 Series Electrified Mortise Locks
Vendor	ASSA Abloy
Manufacturer	Corbin Russwin
BAA Qualified	Yes
Base Material	Brass or Bronze
Fire Rating	3 Hours {A}
Grade	Grade 1
Installation	Commercial
Limited Warranty	2 Years

Details

Th ML20900 Electric Mortise Lock Series combines simplicity and reliability.

Handing Handed; quick reversible. The lockset can be re-handed without disassembling the lockcase.
Door Thickness 1-3/4" (44mm) standard. Optional door thicknesses available; see Quick Codes
Backset 2-3/4" (70mm).
Lockcase Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
Front Heavy gauge steel, 8" (203mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Armored Front Wrought brass, bronze or stainless steel attached by machine screws to lockcase front.
Latchbolt 2-piece mechanical anti-friction insert, 5/8" (16mm) x l" (25mm) x 3/4" (19mm) throw.
Auxiliary Latchbolt 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
Hub • Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). • Lever: steel, 5/16" (8mm). (Including ) • 3/8" (10mm) stainless steel.
Spacing C. to c. knob/lever to cylinder: 3-5/8" (92mm) C. to c. knob/lever to thumbturn: 2-7/16" (62mm).
Strike Wrought brass, bronze or stainless steel ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8'' (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available.
Trim Available with all ML2000 Series trim designs including the Vineyard™ Collection and the Muséo® Collection
Environmental Product Declaration (EPD) certified

Utilizing the proven ML2000 Series mortise lockset with the patented quick reversible latchbolt, the ML20900 series provides remote locking and unlocking. The electrified lock can be installed in a standard mortise prep with slight modification by door manufacturer.
