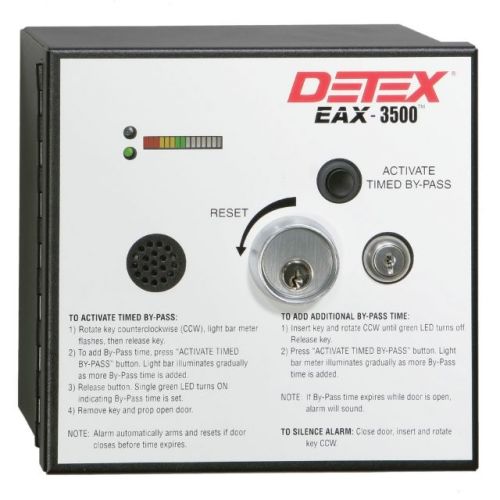

Detex EAX-3500FK Plug-in Transformer

Be the first to review this product

Special Price $810.00

Regular Price $960.00 -16%

Availability: Available for Order

SKU

DET-EAX3500FK

Notify me when the price drops

Detex DET-EAX3500FK Hardwire Timed Exit Alarm Hardwire Timed Exit Alarm 24Vac/Dc Timed Bypass W/Rechargeable Battery W/Flush Kit

EAX-3500 Series - Flush Mount Only, Kit - 24VAC/DC Hardwired Timed Bypass with Rechargeable Battery, Plug-in Transformer

The Detex EAX-3500 is designed for applications requiring a hardwired, timed bypass alarm with rechargeable backup battery. The 100-decibel alarm will sound when someone attempts an unauthorized exit. The EAX-3500 can be temporarily bypassed for deliveries and trash removal, but cannot be left disarmed.

EAX-3500FK includes timed bypass alarm, rechargeable battery, flush magnetic switch and plug-in 24VDC transformer

More Information
Manufacturer Part Number	EAX-3500FK
Features	• Hard-wired low voltage power with rechargeable battery insures uninterrupted secure power feed • Maximum allowable bypass time can be factory set or field-adjusted to 5, 10, 20 or 40 minutes • Bypass time is easily set using two simple slide jumpers, located inside secured enclosure • 100dB alarm, powered by 12 to 24 VAC and rechargeable backup battery (included) • Low battery alert • Rechargeable backup battery provides 72-hours of operation • Timed bypass allows alarm to remain bypassed for allotted minutes, automatically rearming upon door closing • Accepts 5, 6 or 7-pin standard and interchangeable core mortise cylinders with a standard Yale cam • Patented cam assembly automatically adjusts for different size/length cylinders without the use of additional spacers or cylinder collars • Resetting the alarm can only be accomplished with a control key

• Hard-wired low voltage power with rechargeable battery insures uninterrupted secure power feed

• Maximum allowable bypass time can be factory set or field-adjusted to 5, 10, 20 or 40 minutes

• Bypass time is easily set using two simple slide jumpers, located inside secured enclosure

• 100dB alarm, powered by 12 to 24 VAC and rechargeable backup battery (included)

• Low battery alert

• Rechargeable backup battery provides 72-hours of operation

• Timed bypass allows alarm to remain bypassed for allotted minutes, automatically rearming upon door closing

• Accepts 5, 6 or 7-pin standard and interchangeable core mortise cylinders with a standard Yale cam

• Patented cam assembly automatically adjusts for different size/length cylinders without the use of additional spacers or cylinder collars

• Resetting the alarm can only be accomplished with a control key
