DK-16/26CBO Securitron Readers, Keypads, Credential

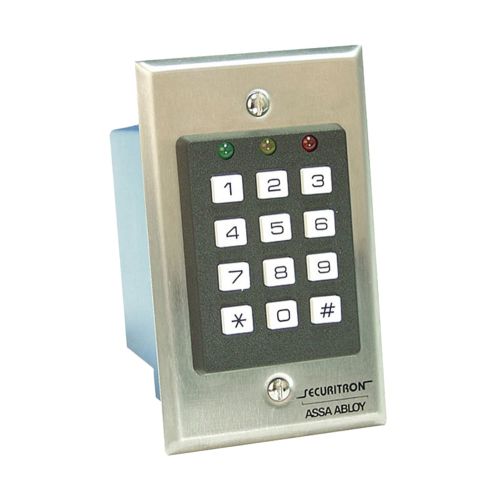

CBO is controller board only for the DK 16/26. The DK-16/26 digital keypad system provides medium/high security control of electric locks in a one or two-door application where both doors have the same control needs. The tamper-resistant keypad provides true 10-key operation for use and programming. Encased in a separate enclosure for secure installation in a protected area, the controller offers REX input and relay output for lock control, alarm shunt or other interfaces. 12 VAC/VDC: 7 mA at rest; 160 mA active 24 VAC/VDC: 20 mA at rest; 190 mA active. Controller mounted in plastic enclosure. 59 users with user code and/or hard code disable feature. 5A DPDT relay output. Request to exit (REX) input. 12 VAC/VDC: 7 mA at rest; 160 mA active 24 VAC/VDC: 20 mA at rest; 190 mA active. CPU operating temperature +32 to +158F [0 to +70C]. Indoor use only. Enclosure: 6"W x 8"H x 3"D.
