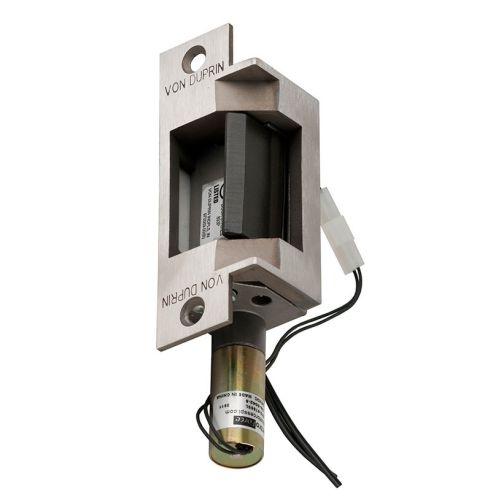

Von Duprin 6211 12V US32D CON The Von Duprin 6200 Series is a heavy duty, stainless steel electric strike that is UL1034 listed and meets ANSI/BHMA Grade 1 and designed to withstand abuse. The 6211 is designed for mortise locks without a deadbolt and cylindrical locks in single door applications.
The Von Duprin 6200 Series is a heavy duty, stainless steel electric strike that is UL1034 listed and meets ANSI/BHMA Grade 1 and designed to withstand abuse. The 6211 is designed for mortise locks without a deadbolt and cylindrical locks in single door applications.
More Information
Manufacturer Part Number
6211 12V US32D CON
Features
Non handed design provides greater flexibility
Strike box is adjustable to compensate for misalignment of the door or frame
Two piece plug connectors are furnished for ease of installation and for removal during strike servicing
ANSI 156.5 Grade 1, 1500 lb hold-force rated
UL1034 Burglary-Resistant and UL10C Electric Strike for Fire Door
Six finishes available to suite with existing hardware
Durable stainless steel construction
24 VDC standard with 12 VDC and AC operation optional
Meets BHMA A156.31, Grade 1 for endurance and strength
Static strength 1300 lbs
Dynamic strength 70 ft-lbs
Endurance 1,000,000 cycles
Write Your Own Review
Non handed design provides greater flexibility
Strike box is adjustable to compensate for misalignment of the door or frame
Two piece plug connectors are furnished for ease of installation and for removal during strike servicing
ANSI 156.5 Grade 1, 1500 lb hold-force rated
UL1034 Burglary-Resistant and UL10C Electric Strike for Fire Door
Six finishes available to suite with existing hardware
Durable stainless steel construction
24 VDC standard with 12 VDC and AC operation optional
Meets BHMA A156.31, Grade 1 for endurance and strength
