The SC60A Series is designed for light- to medium-duty applications, like a small business or office building. It is intended for interior use with aluminum storefronts and mixed-use complexes. It mounts three ways and features the most common hole pattern in the door control industry, making it ideal for a variety of retrofit needs. The SC60A Series features a single-piece cast aluminum body and a 1-3/8 In. heat-treated steel piston, a heat treated pinion and staked valves. The SC60A Series standard door closer is certified ANSI/BHMA A156.4 Grade 1, is UL listed and is backed by a 10-year warranty.

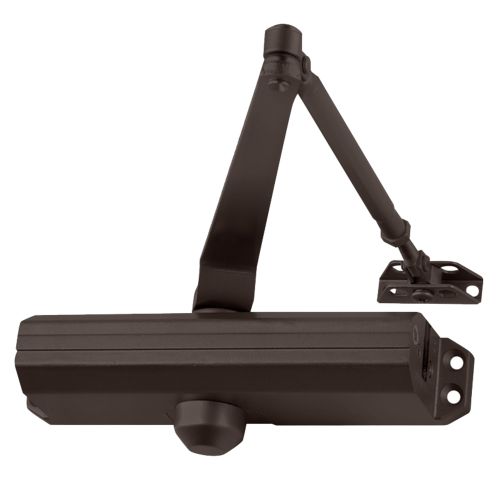

SC61A HWPA DKB Falcon Door Closers and Operator
Regular Price $301.00 -59% Special Price $124.73
Availability: 39 available for order
SKU
FALSC61HWPA695
Grade 1 Light-Medium Duty Surface Door Closer, Hold Open Arm, Push or Pull Side Tri Mount, Size 1 to 5, Less Cover, Dark Bronze Painted Finish, Non-Handed
Description
Specifications
| Series | SC60 Series Surface Closers |
|---|---|
| Vendor | Allegion |
| Manufacturer | Falcon |
| ANSI | A156.4 |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 10 Year |
| Finish Family | Dark Bronze |
| Arm Type | Hold Open Arm |
| Back Check | Adjustable |
| Closer Size | 1 to 5 |
| Cover | Less Cover |
| Handing | Non-Handed |
| Hold Open | Yes |
| Mounting Location | Push or Pull Side |
| Mounting Style | Tri Mount |
| Type | Surface |
| UL Listing | UL 10C |
Details
Designed for dependable performance in light- to medium-traffic applications.
- Common industry hole pattern allows fast and easy retrofit installation without the need for plates or drilling new holes
- 1-3/8" diameter piston provides additional strength, durability and reliability
- Single-piece cast aluminum body minimizes leaks
- Staked valves prevent regulation valves from removal or leaking as a result of over-loosening
- Non-handed design provides ease of installation on either left- or right-swinging doors
- Separate adjustable general speed, latch speed and back check allows easy adjustment for changing climates and door conditions
- Falcon provides a 10-year limited warranty backed by Allegion, a global leader in fire and life safety products
Instructions
- Falcon SC60 Series Door Closer Non-Hold Open Models Installation Instructions
- Falcon SC60/SC61 Drop Mount Installation Instructions
- Falcon SC60A HW Installation Instructions
- Falcon SC60 Series Door Closer Spring-N-Stop Hold Open Arm Models Installation Instructions
- Falcon SC60A HD Installation Instructions
- Falcon SC60/SC61 Drop Mount Spring-N-Stop Installation Instructions
- Falcon SC60A RW Installation Instructions
- Falcon SC60A DS Installation Instructions
- Falcon SC60 Series Door Closer Hold Open Models Installation Instructions
- Falcon SC60 Series Heavy Duty Arm Installation Instructions
- Falcon SC60A Drop Plate Installation Instructions
- Falcon SC60A SNS Installation Instructions
- Falcon SC60 Series Door Closer Dead Stop Dead Stop Hold Open Models Installation Instructions
