Compatibility: System Sensor synchronization protocol
Marketing Information
The SpectrAlert Advance series of notification appliances offers a wide range of speaker/ strobe products for wall and ceiling applications, indoors and outdoors. The strobe portion is designed to be used in 12 or 24 volt, DC or FWR (full wave rectified) systems. The speaker portion can be operated with distribution amplifiers having an output voltage of either 25 or 70.7 volts.
Package Contents

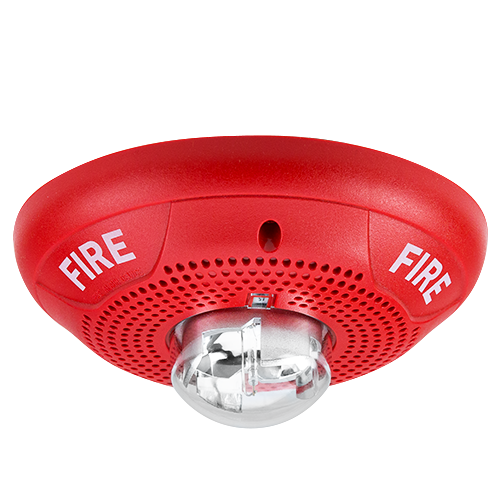

SpectrAlert Advance SPSCRVH Horn/Strobe
Tamper Resistant Torx Head Screw
Information
SpectrAlert Advance SPSCRVH Horn/Strobe, System SensorCEILING,RED,SLCTBL CANDELA, System Sensor - Us
Speaker Strobes, Notification Appliances, Fire
783863034190
More Information
Manufacturer Part Number
SPSCRVH
Features
Alarm
Alarm Status
Audible/Visual
Sound Emission
93 dB(A)
Environmental Conditions
Humidity
10 to 93% Non-condensing
Temperature
32°F (0°C) to 120°F (48.9°C) Operating
Miscellaneous
Additional Information
Selectable high-candela strobe settings of 135, 150, 177 and 185 cd
¼, ½, 1, 2 Watts power
1 Flash per second
Ceiling mount
Certifications & Standards
FM
UL
CSFM
MEA
FCC
Compatibility
System Sensor synchronization protocol
Package Contents
SpectrAlert Advance SPSCRVH Horn/Strobe
Tamper Resistant Torx Head Screw
Physical Characteristics
Color
Red
Dimensions
6.8" Diameter x 4.8" Depth
Power Description
Input Voltage
70.70 V
Write Your Own Review
Alarm
Alarm Status
Audible/Visual
Sound Emission
93 dB(A)
Environmental Conditions
Humidity
10 to 93% Non-condensing
Temperature
32°F (0°C) to 120°F (48.9°C) Operating
Miscellaneous
Additional Information
Selectable high-candela strobe settings of 135, 150, 177 and 185 cd
