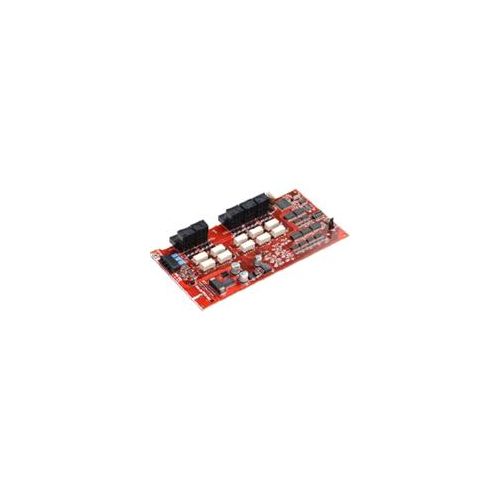

The ANN-RLY relay module provides 10 programmable Form-C relays when used with a compatible FACP (Fire Alarm Control Panel). The ANN-RLY module may be mounted inside the FACP main circuit board chassis or in the battery area of the enclosure using optional mounting bracket P/N: ANN-MBRLY. Reference Installation Instructions document #53033.
The ANN-RLY and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format. An additional two wires are used for 24-volt DC power. A single four-conductor unshielded cable may be used for both power and data communications.Up to eight ANN-BUS devices may be connected to the ANNBUS of each FACP.
More Information
Manufacturer Part Number
ANN-RLY
Features
Features • ANN-RLY connects to the ANN-BUS terminal on the FACP and requires minimal programming. • Provides 10 programmable Form-C relays. • Ten Form-C relays can be programmed for various functions; Alarm, Trouble, Supervisory, AC Loss, Waterflow Delay, Input Zones and Silenceable Alarm. • Compatible with the MS9600LS, MS-9600UDLS, MS-9200UDLS, MS-9050UD, MS-5UD-3, MPR-2001, MRP-2002 and MS-10UD-7. • May be powered by 24 VDC from the host FACP or by remote power supply (requires 24 VDC). • Up to eight ANN-BUS devices may be connected to theANN-BUS of each FACP. • Listed to UL Standard 864, 9th Edition.
Specifications • Maximum ANN-BUS Voltage: 24 VDC • Maximum Current: – Alarm: 75 mA Standby: 15 mA • Ambient Temperature: 32ºF to 120ºF (0ºC to 49ºC) • Relative Humidity: 93% ± 2% RH (noncondensing) at 32ºC± 2ºC (90ºF ± 3ºF) • For use indoors in a dry location • Connections to FACP are power-limited and supervised. • Relay Contact Ratings: 2 Amps @ 30VDC (Resistive) 0.5 Amps @ 30VAC (Resistive)
