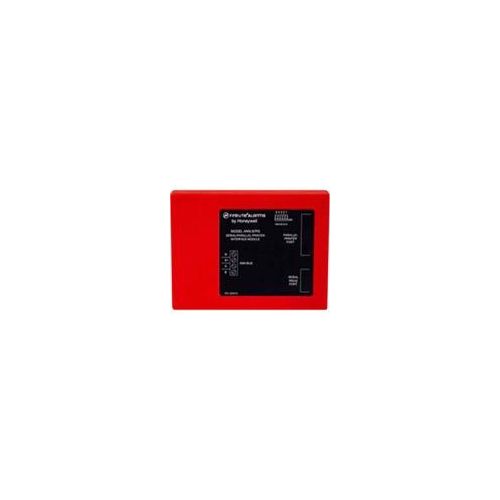

The ANN-S/ PG Interface module connects either a serial or parallel printer with a compatible Fire Alarm Control Panel (FACP) to print real-time logs of system events, detector status reports, and event histories. The ANN-S/ PG and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format. An additional two wires are used for 24-volt DC power. A single four-conductor unshielded cable may be used for both power and data communications.
More Information
Manufacturer Part Number
ANN-S/PG
Features
Miscellaneous
Additional Information
Can be remotely located up to 6,000 feet (1,829 m) from the panel
Up to eight ANN-S/PGs may be connected to the ANN-Bus of each FACP
May be powered by 24 VDC from the host FACP or by remote power supply
Auto-configure menu selection allows programmer to bring all the devices attached to the ANN-BUS on-line quickly
Physical Characteristics
Depth
1.5"
Form Factor
Wall Mountable
Height
6.0"
Width
7.8"
