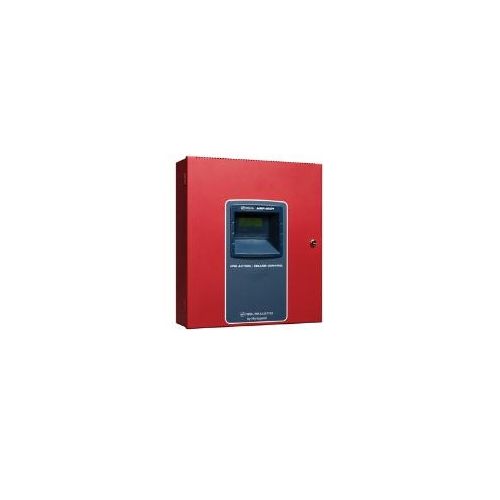

The MRP-2001 is a six-zone FACP for single and dual hazard deluge and preaction applications. The MRP-2001 provides reliable fire detection, signaling and protection for commercial, industrial and institutional buildings requiring water-based releasing. The MRP-2001 is compatible with System Sensor's i3 detectors which are conventional smoke detectors that can transmit a maintenance trouble signal to the FACP indicating the need for cleaning and a supervisory 'freeze' signal when the ambient temperature falls below the detector rating of approximately 45°F (7.22°C). In addition, the control panel is compatible with conventional input devices such as two-wire smoke detectors, four-wire smoke detectors, pull stations, waterflow devices, tamper switches and other normally-open contact devices. Refer to the Fire?Lite Device Compatibility Document for a complete listing of compatible devices.
More Information
Manufacturer Part Number
MRP2001
Features
Additional Information
Designed for sprinkler standards NFPA 13, 15 and 16
Dual hazard operation
Adjustable waterflow discharge timer and two soak timers
Six programmable Style B (Class B) IDCs (Initiating Device Circuit)
Four programmable Style Y (Class B) output circuits - (special application power)
Three programmable Form-C relays
7.0 amps total 24 VDC output current
Resettable and non-resettable output power
Compatibility
System Sensor i3 Series Detectors Fire-Lite:
Smoke Detectors
Pull Stations
Waterflow Devices
Tamper Switches
Country of Origin
United States
