The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.

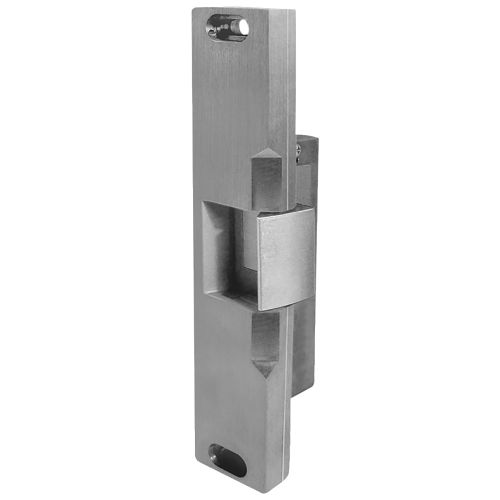

310-4 F 12D 630 HES Electric Strikes, Bolts, Magnet
Regular Price $1,222.00 -51% Special Price $602.20
Availability: Available for Order
SKU
HAN1003104F12D630
Fail Safe, Complete 12VDC Electric Strike, PK Keeper, Satin Stainless Steel
Description
Specifications
| Series | 310-4 Series Electric Strikes |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | HES |
| Application | Rim Panic Device with Pullman Latch |
| BAA Qualified | Yes |
| Base Material | Stainless Steel |
| Fire Rating | No |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 5 Years |
| Origin | USA |
| Finish Family | Matte Silver |
| Configuration | Centered |
| Faceplate Size | 9" x 1-1/2" |
| For Use With | Rim Exit Devices |
| Frame Application | Metal or Wood |
| Holding Force | 1500 lbs. |
| Keeper Size | PK Keeper |
| AMP Draw | .51 @ 12V .25 @ 24V |
| Function | Fail Safe |
| Operating Voltage | 12 VDC |
Details
The 310-4 is a 3 hour fire-rated, industrial electric strike designed for extreme heavy duty applications.
- UL 10C, 3 hour fire-rated (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- UL1034, burglary-resistant listed
- UL 294 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- .51 Amps @ 12VDC continuous duty
- .25 Amps @ 24VDC continuous duty
- Integrated shim for quick customization of faceplate thickness (1/2" to 3/4")
- Tamper resistant, heavy-duty construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance rating 500,000 cycles
- Integrated ramps for better deadlatch handling
- Set screws for horizontal lockdown
- In-frame horizontal adjustability
- Wider faceplate (1-3/4”) for greater versatility
- Non-handed
- Fail Secure (standard)
- Plug-in connector
- Five year limited warranty
- Fail Safe
- LCBMA - Latchbolt & Locking Cam Monitor with Auxiliary Switch
The 310-4 has a unique 3/4" face plate with an integraded 1/4" base shim that can be removed in the field to accommodate rim exit devices with a 1/2" or 3/4" throw latchbolt.
