All Roton continuous geared hinges have cutout design and spacing coordination is thereby eliminated in both new construction and restoration work. Reinforcement plates are not required in doors or frames except where the gauge is too thin for the fasteners in relation to the door weight or where abusive operation is anticipated.
780-157 83 DBA Hager Hinges, Pivots and Hardware
Regular Price $392.35 -48% Special Price $205.49
Availability: Available for Order
SKU
HAG10078015783DBA

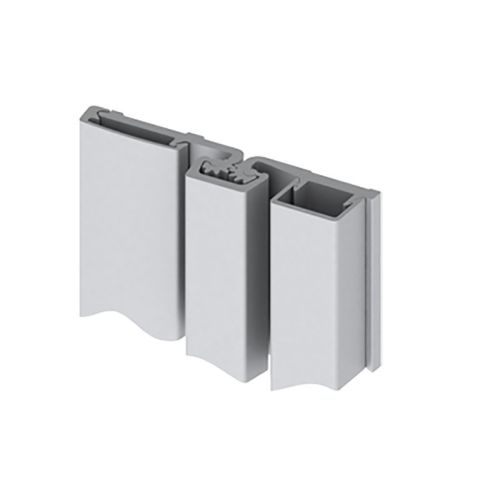

Full Surface Continuous Geared Hinge, 83", Dark Bronze Anodized Aluminum Finish
Description
Speicfications
| Series | Roton Continuous Geared Hinges |
|---|---|
| Vendor | Hager |
| Manufacturer | Hager |
| Base Material | Aluminum |
| Fire Rating | 3 Hours Metal, 90 Min. Wood Composite (with Studs) |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | Lifetime |
| Finish Family | Dark Bronze |
| Bearing Type | Continuous Gear |
| Hinge Type | Continuous Hinge, Full Surface |
Details
Wide variety of applications including widethrow, electrically modified power transfer and monitoring, anchor hinges, fire-rated spring hinges.
- ANSI/BHMA A156.26 C
- Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
- Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.hagerco.com. Hager warrants US10B finish only over brass or bronze base material. If steel base material is necessary, Hager recommends US10A lacquer finish.
Hager hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.
Instructions
- Roton 500-048 Instruction Sheet
- Roton 500-200 Instruction Sheet
- Roton 500-220 Instruction Sheet
- Roton 780-041 Instruction Sheet
- Roton 780-053, 780-054 Instruction Sheet
- Roton 780-110 Instruction Sheet
- Roton 780-111, 780-112, 780-226, 780-235 Instruction Sheet
- Roton 750-134 Instruction Sheet
- Roton 750-138 Instruction Sheet
- Roton 780-155 Instruction Sheet
- Roton 780-211 Instruction Sheet
- Roton 780-259 Instruction Sheet
- Roton 780-259 Instruction Sheet
- Roton 780-213 Instruction Sheet
- Roton 78-257HD Instruction Sheet
- Roton 780300HD Instruction Sheet
- Roton Hinge w/ Electric Modifications - Removable ETW Instruction Sheet
- Roton Hinge w/ Electric Modifications - Concealed ETW, Full Surface Instruction Sheet
- Roton Hinge w/ Electric Modifications - ETW & EMN Instruction Sheet
- Roton 1200-600XHD, 1200-650XHD Instruction Sheet
- SS Continuous Hinge w/ Electric Modifications - ETW E1S Instruction Sheet
- Roton Hinge UL Fire-Rated Studs - 780-041 Instruction Sheet
- Roton Hinge UL Fire-Rated Studs - 780-111, -112, -124, -224, -226, -235 Instruction Sheet
