HES-1006 630 Finish -electronic-lock satin stainless steel finished strike field selectable / fire rated, strongest most versatile electric strike available.

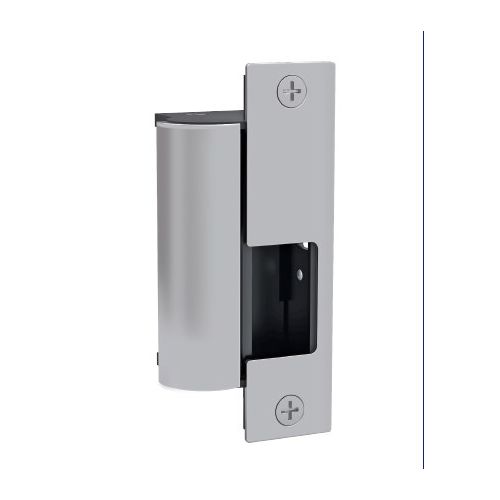

HES-1006 in 630 Finish The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
More Information
Manufacturer Part Number
1006-630
Features
Specifications
UL 10C fire-rated, 3 hour single door (fail secure only)
UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
CAN4-S104(ULC-S104) fire door conformant
ANSI A250.13-2003 windstorm listed
UL 1034 burglary-resistant listed and suitable for outdoor use
ANSI/BHMA A156.31, Grade 1
NFPA-252 fire door conformant
ASTM-E152 fire door conformant
MEA New York City accepted
Florida Building Code approved
Patents #6021038 & 6595564
Frame application
Metal
Wood
Electrical
.45 Amps at 12VDC* continuous duty
.25 Amps at 24VDC* continuous duty
*Note: DC must be well filtered with ripple less than 1 volt RMS.
Standard Features
Stainless steel construction
Tamper resistant
Static strength 3070 lbs. (fail secure)
Dynamic strength 350 ft-lbs. (fail secure)
Endurance 1,000,000 cycles
Fail secure (standard)
Dual voltage 12 or 24VDC continuous duty
Non-handed
Internally mounted solenoid
Accommodates up to 1" deadbolt
Plug-in connector
Full keeper shims for horizontal adjustment
Trim enhancer
Five year limited warranty
Optional Features
Fail Safe
LBM - Latchbolt monitor
LBSM - Latchbolt strike monitor
27 interchangeable faceplate options (monitor switches may not work with all faceplate options)
