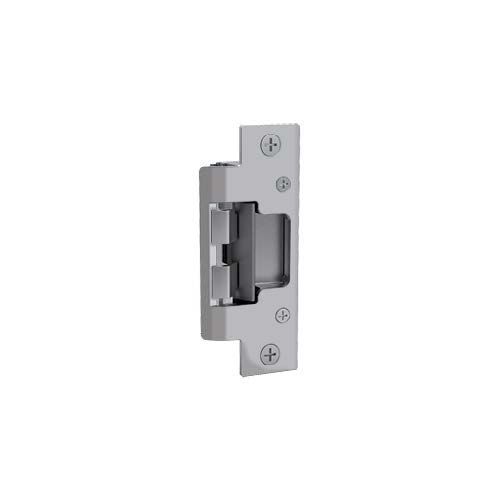

The 8000 series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.
More Information
Manufacturer Part Number
8000C 630
Features
Features and Benefit
Specifications
UL 1034 burglary-resistant listed and suitable for outdoor use
ANSI/BHMA A156.31, Grade 1
Patent #5,934,720; 8,146,966; 8,157,302
Frame application
Metal
Wood
Electrical
.24 Amps @ 12VDC/VAC
.12 Amps @ 24VDC/VAC
DC continuous duty/AC intermittent duty only
Standard Features
No cutting on frame required
Vertical adjustability to accommodate door sag and misalignment
Tamper resistant
Static strength 1,500 lbs.
Dynamic strength 70 ft-lbs.
Endurance 500,000 cycles
Field selectable fail safe/fail secure
Dual voltage 12 or 24 VDC/VAC
Non-handed
Internally mounted solenoid
Accommodates 1/2"-5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
Strike body depth 1-1/16"
NEW! Strike body width decreased to 1-7/16" to increase frame compatibility
Five year limited warranty
Optional Features
LBM - Latchbolt monitor
