The 9500 Series is a 3 hour fire rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" Pullman latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. The 9500 exceeds grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.

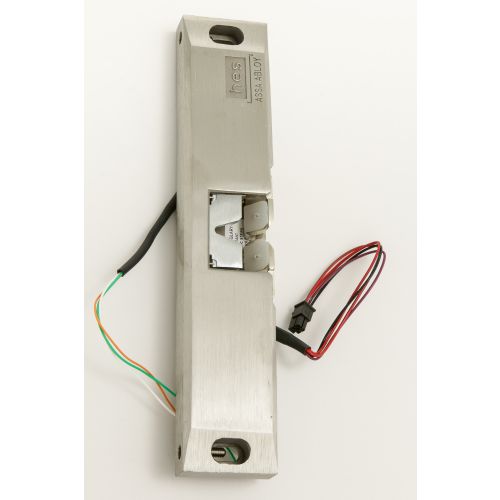

9500-630 HES Electric Strikes, Bolts, Magnet
Regular Price $763.00 -51% Special Price $376.01
Availability: 385 available for order
SKU
HAN1009500630
Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 3/4" Thickness, Fire Rated, Satin Stainless Steel
Description
Specifications
| Series | 9500 Series Electric Strikes |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | HES |
| Application | Rim Panic Device with Pullman Latch |
| BAA Qualified | Yes |
| Base Material | Stainless Steel |
| Fire Rating | 3 Hours {A} |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 5 Years |
| Origin | USA |
| Finish Family | Matte Silver |
| Configuration | Centered |
| Faceplate Size | 9" x 1-3/4" |
| For Use With | Rim Exit Devices |
| Frame Application | Metal or Wood |
| Holding Force | 1500 lbs. |
| Keeper Size | PK Keeper |
| AMP Draw | .45 @ 12V .25 @ 24V |
| Function | Fail Safe/Fail Secure |
| Operating Voltage | 12/24 VDC |
Details
The 9500 Series is fire rated for 3 hours and designed to accommodate rim exit devices with a 3/4" Pullman latch.
- UL 10C fire-rated, 3 hour (fail secure)
- CAN4-S104 (ULC-S104) fire door conformant
- WHI fire door listed
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 (6th Edition) Listed
- ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373)
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- California Fire Marshall listed
- NFPA 80-07 compliant
- RoHS compliant
- Patent #6,390,520
- Patent pending
All components of the 9500 Series are completely encased within its 3/4" thick stainless steel housing, so not cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install.
Instructions
- HES 9400, 9500, 9600 Surface Mounted Electric Strikes Video
- HES 9500 Series Overview
- HES 9600 Series Installation Guide
- HES 9600 Series Installation Template
- HES 9500 Series Compliance Sustainability
- HES Electric Strikes for Every Lockset Application
- HES 9400/9500/9600 Electric Strike Installation Guide
- HES Electric Strikes How to Order Guide
- Electric Strike Selector Guide
- HES 9000-ABS Spacer Bracket Installation Instructions
- HES 9000 Family Electric Strikes Installation Instructions
