The 8300C is designed for easy installation with no cutting on the frame required. The 8300C has a concealed design, is fire-rated and works with cylindrical lockets with a 5/8" throw latchbolt.

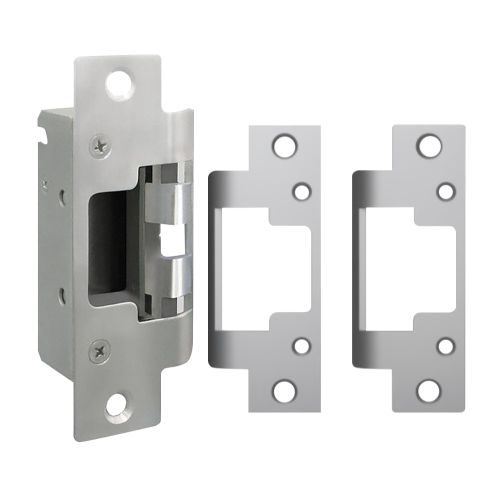

8300C-630 HES Electric Strikes, Bolts, Magnet
Regular Price $686.00 -51% Special Price $338.06
Availability: 353 available for order
SKU
HAN1008300C630
Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Satin Stainless Steel
Description
Specifications
| Series | 8300 Series Electric Strikes |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | HES |
| BAA Qualified | Yes |
| Base Material | Stainless Steel |
| Fire Rating | 3 Hours {A} |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 5 Years |
| Origin | USA |
| Finish Family | Matte Silver |
| Configuration | Centered |
| For Use With | Cylindrical Locks |
| Frame Application | Metal or Wood |
| Holding Force | 1500 lbs. |
| Keeper Size | 1/2" |
| AMP Draw | .24 @ 12V .12 @ 24V |
| Function | Fail Safe/Fail Secure |
| Operating Voltage | 12/24 VDC |
Details
The 8300 Series is fire rated, high performance electric strike that features a unique concealed design.
- UL 10C, fire-rated, 3 hour (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- NFPA 80-07 compliant
- UL 1034 burglary-resistant listed and suitable for outdoor use
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- UBC-7-2-94, Uniform Building Code
- Patent #5,934,720; 8,146,966; 8,157,302
The compact design of the 8300 Series is a great feature that goes well with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline and install.
