The 8500 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the 8500 installs with little or no modification to the frame. Simply remove the existing strike plate, remove the dust box and install. Its strength is derived from a unique keeper pin locking design, enabling the 8500 to exceed Grade-1 ratings. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8500 accommodates mortise latchbolts up to 3/4" throw.

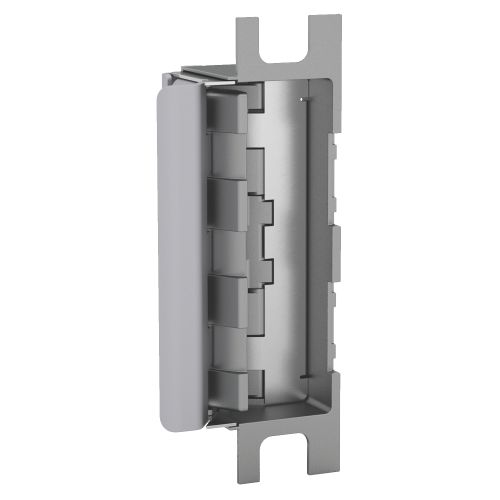

8500-630 HES Electric Strikes, Bolts, Magnet
Regular Price $693.00 -51% Special Price $341.51
Availability: 253 available for order
SKU
HAN1008500630
Fail Safe/Fail Secure, Body Only, 12/24VDC Electric Strike, Satin Stainless Steel Finish
Description
Specifications
| Series | 8500 Series Electric Strikes |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | HES |
| BAA Qualified | Yes |
| Base Material | Stainless Steel |
| Fire Rating | 3 Hours {A} |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 5 Years |
| Origin | USA |
| Finish Family | Matte Silver |
| Configuration | Universal |
| For Use With | Mortise Locks |
| Frame Application | Metal/Wood |
| Holding Force | 1500 lbs. |
| Keeper Size | 3/4" |
| AMP Draw | .24 @ 12V .12 @ 24V |
| Function | Fail Safe/Fail Secure |
| Operating Voltage | 12/24 VDC |
Details
The high performance 8500 Series is fire rated, compact, and features a unique concealed design.
- UL 10C-fire-rated, 3 hour (fail secure)
- CAN4-S104(ULC-S104) fire door conformant
- NFPA 80-07 Compliant
- UL 1034 burglary-resistant listed and suitable for outdoor use
- ANSI/BHMA A156.31, Grade 1
- NFPA -252 fire door conformant
- ASTM-E152 fire door conformant
- Patents Pending
The 8500 series is a unique elctric strike that complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8500 accommodates mortise latchbolts up to 3/4" throw.
