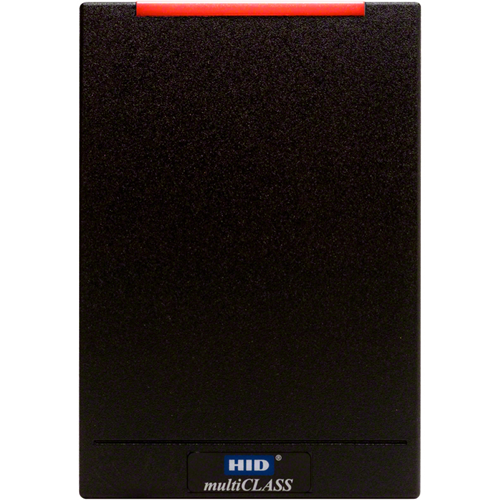

HID 920NHPNEK00336 pivCLASS® Contactless Readers
HID Global's pivCLASS Government Solutions portfolio enables facilities to upgrade their existing physical access control system (PACS) to achieve FIPS 201 compliance. The pivCLASS contactless readers (R10 and R40) and their proximity-enabled versions deliver the "Controlled" assurance level defined in the National Institute of Standards and Technology (NIST) SP 800-116 guidelines when used with the pivCLASS Authentication Module (PAM) to perform a single-factor authentication check.
CHUID + VIS Authentication – The pivCLASS system tests the signature on the PIV Card Holder Unique IDentifier (CHUID) data object. The CHUID signature check ensures the card is authentic (came from a valid issuer) and has integrity (has not been altered). Because the CHUID is a “free read” and will be transmitted unencrypted to any reader, it could be possible for perpetrators to capture a PIV card's CHUID and create a counterfeit card. However, the required visual check (VIS) of the card secures against this threat by making it possible to identify cards that have been counterfeited or altered. *
CAK Authentication – The full duplex version of these pivCLASS readers work with the PAM to perform a PKI challenge-response test in addition to a signature check to validate the card authentication key (CAK). The challenge-response test ensures the public key in the card authentication certificate is bound to the private key on the card. This CAK authentication secures against cards that have been counterfeited, altered, copied or cloned. The half-duplex version of these readers supports the OSDP protocol to half duplex authentication modules. These pivCLASS readers are guaranteed to meet the stringent specifications for operation, reliability, and interoperability with other Genuine HID™ products.
| Manufacturer Part Number | 920NHPNEK00336 |
|---|---|
| Features | ADDITIONAL PRODUCT FEATURES: Architected for maximum security and affordability, these readers utilize the pivCLASS Authentication Module to provide cryptographic functionality and to pass Wiegand-formatted data to the PACS controller. Locating the critical security operations within the secure perimeter, rather than on the attack side of the door, increases security and reader affordability.
Available for either half-duplex or fullduplex communication.
Up to two pivCLASS readers can connect to a pivCLASS Authentication Module via full duplex RS-485 communication to the reader, typically enabling facilities to reuse much of their existing wiring.
Available in mini-mullion and wall switch form factors to mount and cover singlegang switch boxes.
Available with either a pigtail or terminal strip wiring termination.
Each of these readers can also be ordered with 125 kHz proximity support. |
ADDITIONAL PRODUCT FEATURES:
Architected for maximum security and
affordability, these readers utilize the
pivCLASS Authentication Module to
provide cryptographic functionality and
to pass Wiegand-formatted data to the
PACS controller. Locating the critical
security operations within the secure
perimeter, rather than on the attack
side of the door, increases security and
reader affordability.
Available for either half-duplex or fullduplex communication.
Up to two pivCLASS readers can
connect to a pivCLASS Authentication
Module via full duplex RS-485
communication to the reader, typically
enabling facilities to reuse much of their
existing wiring.
Available in mini-mullion and wall switch
form factors to mount and cover singlegang switch boxes.
Available with either a pigtail or terminal
strip wiring termination.
Each of these readers can also be
ordered with 125 kHz proximity support.
